A 58-year-old woman with acute abdominal distension and vomiting is evaluated with supine and erect plain radiographs. Which single radiographic sign most reliably distinguishes small bowel obstruction from large bowel obstruction?

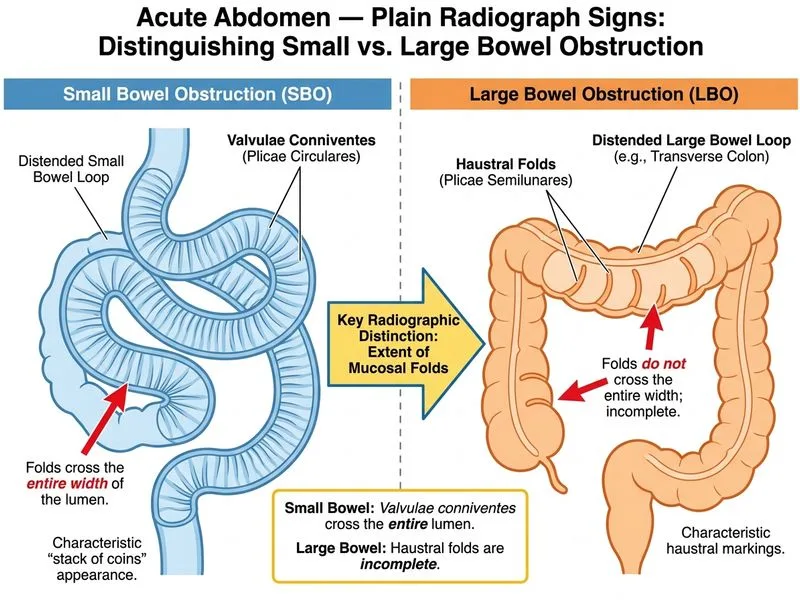

## Distinguishing Small Bowel from Large Bowel Obstruction on Plain Radiograph ### Anatomical Basis of Differentiation **Key Point:** The mucosal pattern (valvulae conniventes vs. haustra) is the most reliable discriminator between small and large bowel on plain radiography. ### Comparative Table | Feature | Small Bowel | Large Bowel | |---------|------------|-------------| | **Mucosal Pattern** | Valvulae conniventes (plicae circulares) | Haustra | | **Valvulae Conniventes** | Cross entire lumen (continuous) | Absent | | **Haustra** | Absent | Extend partway across lumen (incomplete) | | **Caliber** | Narrower (1–4 cm) | Wider (>6 cm) | | **Distribution** | Central (periumbilical) | Peripheral (frame the abdomen) | | **Air-Fluid Levels** | Multiple, stacked ("string of pearls") | Few, less organized | ### High-Yield Anatomical Pearl **High-Yield:** Valvulae conniventes (plicae circulares) are mucosal folds of the small bowel that form complete rings and **cross the entire width of the bowel lumen**. Haustra are incomplete folds of the colon that do **not** cross the full width — they are separated by haustra coli (the sacculations between them). ### Clinical Pearl **Clinical Pearl:** On a well-penetrated abdominal radiograph, the mucosal pattern is visible even when bowel loops overlap. A single loop showing valvulae conniventes crossing completely is diagnostic of small bowel; if you see only partial folds (haustra) that do not span the lumen, it is large bowel. ### Mnemonic **Mnemonic:** **VCHH** — **V**alvulae (complete, cross entire lumen) = small bowel; **H**austra (incomplete, do not cross) = large bowel. Or: **"Valves are Vertical walls (complete); Haustra are Halves (incomplete)."** ### Why This Sign Is Most Reliable While bowel caliber, distribution, and air-fluid level patterns are also helpful, they can be distorted by bowel dilatation and patient factors. The mucosal fold pattern is an intrinsic anatomical feature that persists regardless of obstruction severity or patient positioning. [cite:Robbins 10e Ch 17]
