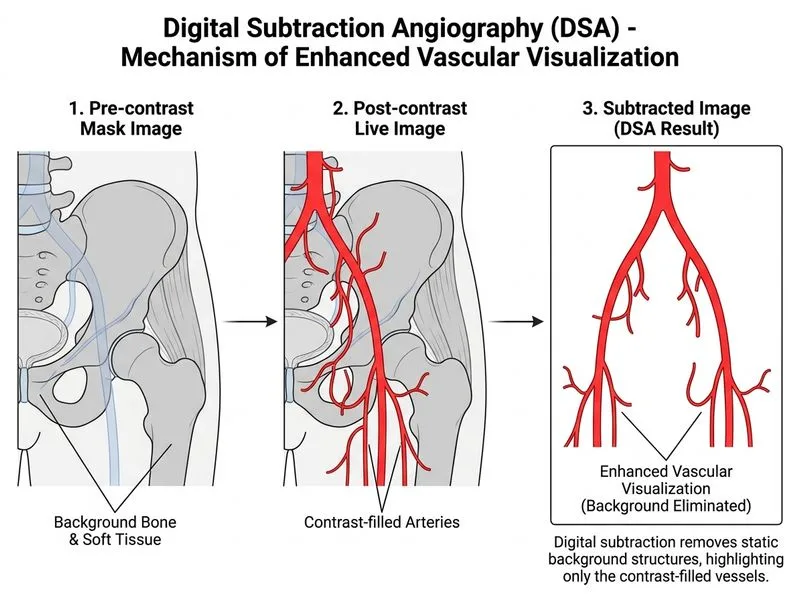

## Digital Subtraction Angiography (DSA) **Key Point:** DSA is the gold standard for vascular imaging because it uses mathematical subtraction to remove background anatomy and isolate the contrast-filled vasculature. ### Principle of DSA 1. A **mask image** (pre-contrast) is acquired and digitized. 2. A **contrast image** (post-contrast) is acquired and digitized. 3. The mask is **subtracted** from the contrast image, leaving only the opacified vessels. 4. Result: High-contrast, noise-free vascular image with minimal background. **High-Yield:** DSA dramatically improves **signal-to-noise ratio** and allows visualization of small vessels, slow flow, and subtle vascular pathology that would be obscured on conventional fluoroscopy. ### Advantages of DSA | Feature | Advantage | |---------|----------| | Contrast sensitivity | Detects vessels as small as 0.3–0.5 mm | | Background elimination | Bone, soft tissue, and organs removed by subtraction | | Temporal resolution | Real-time imaging at 30 fps or higher | | Dose efficiency | Lower contrast volume required due to enhanced visualization | | Roadmapping | Stored mask allows overlay guidance during intervention | **Clinical Pearl:** DSA roadmapping is essential in interventional procedures—the stored mask image can be overlaid on live fluoroscopy to guide catheter placement without repeated contrast injection. **Warning:** While DSA reduces the contrast volume needed, it does NOT reduce radiation dose compared to conventional fluoroscopy; in fact, DSA systems may deliver slightly higher dose due to the acquisition of both mask and contrast images. However, the superior image quality and reduced need for repeat imaging offset this. [cite:Castañeda-Zúñiga Interventional Radiology Ch 1]
