A 58-year-old woman with a history of hypertension presents with acute left-sided weakness and facial droop. Imaging reveals occlusion of the right middle cerebral artery (MCA) at its origin. Which feature of the circle of Willis would be the most critical determinant of whether she develops a major stroke versus a minor deficit?

Explanation

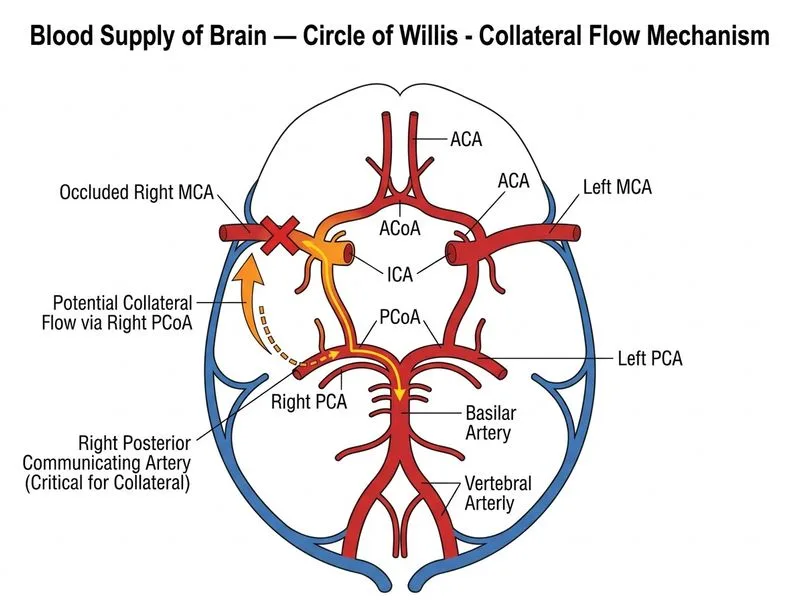

## Circle of Willis Collateral Flow in MCA Occlusion ### Pathophysiology of Collateral Compensation **Key Point:** When the MCA is occluded at its origin, the affected hemisphere loses its primary blood supply. Survival of tissue depends on collateral circulation through the circle of Willis. ### Collateral Pathways in MCA Occlusion ```mermaid flowchart TD A["Right MCA Occlusion at Origin"]:::urgent --> B{"Which collateral pathway is available?"}:::decision B -->|"Right PComm patent & adequate diameter"| C["Posterior circulation → Right ICA → Right MCA territory"]:::action B -->|"Right PComm hypoplastic/absent"| D["Reduced collateral from posterior circulation"]:::outcome B -->|"Right AComm available"| E["Left ACA → Right ACA → Limited MCA support"]:::action C --> F["Penumbra salvage possible"]:::outcome D --> G["Core infarction likely"]:::urgent E --> H["Partial compensation only"]:::outcome ``` ### Why the Posterior Communicating Artery is Critical | Collateral Route | Source | Destination | Efficacy in MCA Occlusion | | --- | --- | --- | --- | | **Posterior communicating artery (PComm)** | Posterior circulation (vertebrobasilar → PCA → ICA via PComm) | Right MCA territory via ICA | **Excellent** — provides direct access to ICA distal to occlusion | | **Anterior communicating artery (AComm)** | Left ACA | Right ACA → limited MCA supply | **Poor** — MCA is not directly supplied by ACA | | **Leptomeningeal collaterals** | Distal branches of ACA, PCA | Distal MCA territory | **Variable** — slow to develop, insufficient in acute phase | **High-Yield:** The posterior communicating artery is the **only direct pathway** that allows blood from the posterior circulation (which is unaffected by the right MCA occlusion) to reach the right internal carotid artery distal to the occlusion site, thereby perfusing the MCA territory. ### Clinical Pearl **Clinical Pearl:** Patients with a patent, large-diameter PComm have significantly better collateral flow and smaller final infarct volumes compared to those with hypoplastic or absent PComm. This anatomical variant is one of the strongest predictors of stroke outcome in MCA occlusion. **Mnemonic:** **PComm = Posterior-to-ICA bridge** — it is the only circle of Willis vessel that can "rescue" an occluded MCA by allowing posterior circulation blood to enter the carotid system distal to the blockage. ### Why AComm Cannot Compensate The anterior communicating artery connects the two anterior cerebral arteries. In MCA occlusion, blood from the left ACA can reach the right ACA, but the ACA does not supply the MCA territory — the MCA territory is supplied by the MCA itself or by collaterals from the PCA (via PComm). Therefore, AComm flow provides minimal benefit. ### Outcome Correlation - **Patent PComm (>1.5 mm diameter):** ~40–50% reduction in infarct volume; better functional outcome. - **Hypoplastic PComm (<1 mm):** Minimal collateral benefit; larger infarct; worse prognosis.
