A 68-year-old man with a history of lung cancer presents with diffuse bone pain and elevated alkaline phosphatase. A technetium-99m methylene diphosphonate (MDP) bone scan shows multiple focal areas of increased uptake in the axial skeleton, ribs, and pelvis with relatively preserved tracer activity in the long bones. What is the most likely interpretation of this pattern?

Explanation

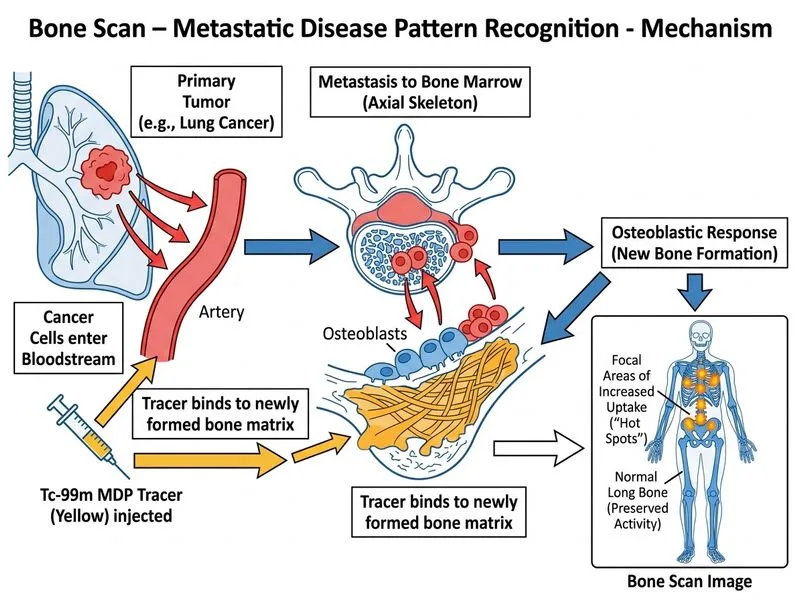

## Interpretation of Bone Scan Pattern ### Clinical Presentation Analysis The patient presents with: - Known primary malignancy (lung cancer) - Diffuse bone pain - Elevated alkaline phosphatase (suggests osteoblastic activity) - Focal areas of increased tracer uptake in axial skeleton, ribs, and pelvis - Relatively preserved activity in long bones ### Bone Scan Physiology **Key Point:** Technetium-99m MDP is a phosphate analog that localizes to bone through two mechanisms: 1. Chemisorption to hydroxyapatite crystal surface 2. Increased blood flow and osteoblastic activity Increased uptake indicates either increased blood flow, increased osteoblastic activity, or both. ### Pattern Recognition | Feature | Metastatic Disease | Osteoporosis | Paget's Disease | Hyperparathyroidism | |---------|-------------------|--------------|-----------------|--------------------| | **Focal uptake** | Yes, multiple | Diffuse decrease | Yes, focal | Diffuse increase | | **Axial predominance** | Common | No | Variable | Generalized | | **Long bone sparing** | Can occur | Decreased uptake | Yes | Increased uptake | | **Alkaline phosphatase** | Elevated | Normal | Markedly elevated | Mildly elevated | | **Clinical context** | Known malignancy | Age, immobility | Deformity, pain | Hypercalcemia | ### Why This is Metastatic Bone Disease 1. **Focal pattern with axial predominance** — metastases preferentially lodge in the red marrow of axial skeleton (vertebrae, ribs, pelvis) 2. **Osteoblastic response** — lung cancer (particularly small cell and adenocarcinoma) commonly triggers osteoblastic metastases with increased tracer uptake 3. **Elevated alkaline phosphatase** — reflects increased osteoblastic activity at metastatic sites 4. **Long bone sparing** — metastases less commonly involve diaphysis of long bones due to lower blood flow in these regions 5. **Clinical context** — known primary malignancy with systemic bone pain is classic for disseminated skeletal metastases **Clinical Pearl:** Lung cancer metastases are often osteoblastic (unlike breast cancer which can be osteolytic), producing a "hot" appearance on bone scan with elevated alkaline phosphatase. **High-Yield:** The combination of **focal uptake + axial predominance + known malignancy + elevated ALP** is pathognomonic for metastatic bone disease with osteoblastic response. [cite:Harrison 21e Ch 397]
