A 16-year-old boy presents with a metaphyseal lesion of the distal femur showing a mixed lytic and sclerotic pattern with cortical destruction and a wide zone of transition. The periosteum shows radiating spicules perpendicular to the cortex. What is the most likely radiological diagnosis?

Explanation

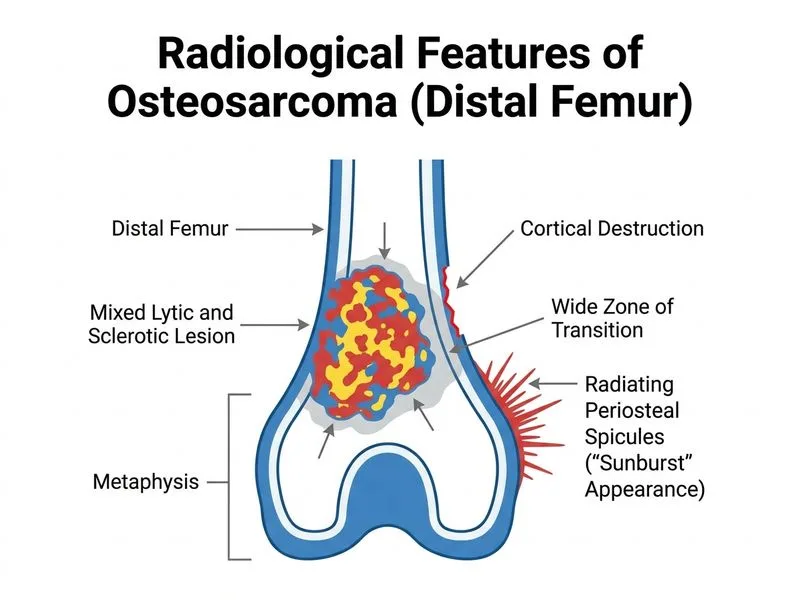

## Osteosarcoma: Radiological Diagnosis **Key Point:** Osteosarcoma is the most common primary malignant bone tumor in adolescents and young adults. The radiological findings in this case are pathognomonic: metaphyseal location, mixed lytic-sclerotic pattern, cortical destruction, wide zone of transition, and **sunburst periosteal reaction**. ### Radiological Features of Osteosarcoma **High-Yield:** Classic triad of osteosarcoma imaging: 1. **Metaphyseal location** (around the knee: distal femur, proximal tibia) 2. **Mixed lytic and sclerotic pattern** (aggressive bone destruction with reactive new bone) 3. **Sunburst periosteal reaction** (radiating spicules perpendicular to cortex) ### Detailed Radiological Findings | Feature | Osteosarcoma | Significance | |---------|--------------|-------------| | Location | Metaphysis (especially distal femur, proximal tibia) | Around the knee in 50% of cases | | Age | 10–25 years (peak 15–20) | Adolescents during growth spurts | | Pattern | Mixed lytic and sclerotic | Aggressive lesion with reactive bone formation | | Zone of transition | Wide (>2 cm) | Indicates rapid, aggressive growth | | Cortical destruction | Present | Breaks through cortex | | Periosteal reaction | Sunburst (radiating spicules) | Pathognomonic when present | | Soft tissue mass | Often present | Indicates extraosseous extension | | Codman triangle | May be present | Additional sign of aggression | ### Sunburst Pattern Explained **Clinical Pearl:** The sunburst (or radiating spicules) pattern occurs when: 1. Tumor breaks through the cortex 2. Periosteum is lifted and attempts reactive new bone formation 3. New bone forms along blood vessels (Sharpey fibers) that run perpendicular to the cortex 4. This creates the characteristic radiating spicule appearance on radiographs This is **highly suggestive of osteosarcoma** but can occasionally be seen in other aggressive lesions. ### Comparison with Other Bone Lesions ```mermaid flowchart TD A[Metaphyseal bone lesion in adolescent]:::outcome --> B{Radiological pattern?}:::decision B -->|Mixed lytic-sclerotic + sunburst| C[Osteosarcoma]:::action B -->|Purely lytic + onion skin| D[Ewing sarcoma]:::action B -->|Purely lytic + eccentric| E[Giant cell tumor]:::action B -->|Sclerotic + central lucency| F[Hemangioma]:::action C --> G[Metaphyseal location, age 15-25]:::outcome D --> H[Diaphyseal/diametaphyseal, age 10-20]:::outcome E --> I[Epiphyseal, age 20-40]:::outcome F --> J[Metaphyseal, benign course]:::outcome ``` **Mnemonic - Osteosarcoma Features: MIXES** - **M**etaphyseal location - **I**n adolescents (10–25 years) - **X** (mixed) lytic and sclerotic - **E**xtensive soft tissue mass - **S**unburst periosteal reaction ### Why This Case is Osteosarcoma 1. **Age:** 16 years old (peak incidence 15–20) 2. **Location:** Distal femur (most common site; around the knee in 50%) 3. **Radiological pattern:** Mixed lytic-sclerotic with cortical destruction and wide zone of transition (aggressive) 4. **Sunburst periosteal reaction:** Pathognomonic when present; indicates osteosarcoma until proven otherwise **Warning:** Do not confuse sunburst with onion skin. Sunburst = radiating spicules (osteosarcoma). Onion skin = concentric rings (Ewing sarcoma). [cite:Rockwood and Green's Fractures in Adults, Musculoskeletal Imaging Chapter; Dahnert Radiology Review Manual]
