A 72-year-old woman from Mumbai with a history of acute anterior wall myocardial infarction 2 weeks ago presents with acute dyspnea and orthopnea. On examination, she is tachycardic (110 bpm), hypotensive (95/60 mmHg), and has a prominent S3 gallop. Chest X-ray shows pulmonary edema. Echocardiography reveals an ejection fraction of 28% with akinesis of the anterior wall. Which phase of the cardiac cycle is most directly responsible for the pathophysiology of acute pulmonary edema in this patient?

Explanation

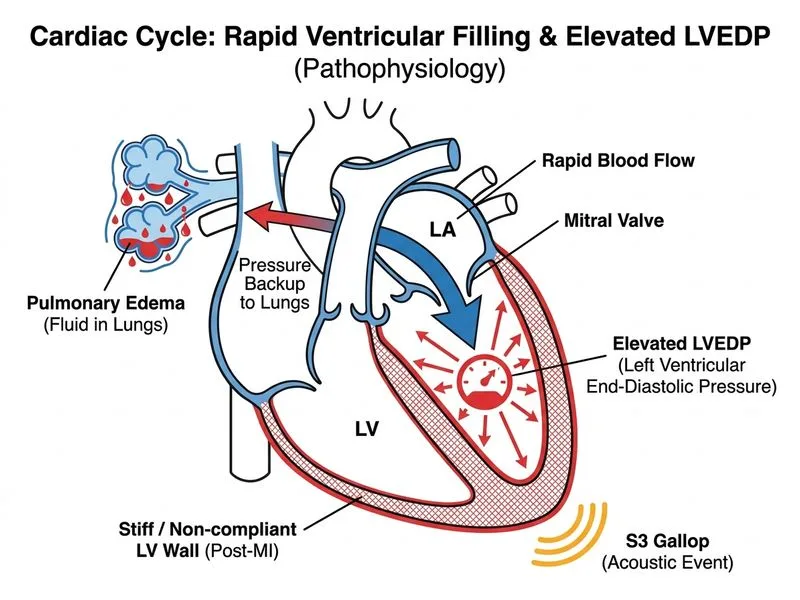

## Acute Pulmonary Edema in Systolic Dysfunction: Diastolic Phase Pathophysiology ### Understanding the S3 Gallop and Pulmonary Edema Link **Key Point:** Pulmonary edema in acute systolic heart failure results from **elevated left ventricular end-diastolic pressure (LVEDP)** transmitted backward to the pulmonary circulation. The S3 gallop occurs during the rapid ventricular filling phase when this pressure is highest. ### Cardiac Cycle Phases and Their Hemodynamic Consequences ```mermaid flowchart TD A[Acute Anterior MI] --> B[LV Dysfunction] B --> C[Reduced Contractility] C --> D[Impaired Systolic Emptying] D --> E[Increased LVEDP]:::urgent E --> F[Rapid Filling Phase] F --> G[S3 Gallop Generated]:::outcome E --> H[Backward Transmission] H --> I[Pulmonary Capillary Wedge Pressure ↑]:::urgent I --> J[Pulmonary Edema]:::urgent style A fill:#ffe8e8 style E fill:#ffcccc ``` ### The Rapid Filling Phase (Early Diastole) **High-Yield:** The rapid ventricular filling phase (first third of diastole) is when: 1. The mitral valve opens after isovolumetric relaxation 2. Blood rushes into the ventricle due to the pressure gradient between atrium and ventricle 3. In systolic dysfunction, the ventricle is dilated and non-compliant 4. LVEDP remains elevated even during filling 5. This elevated pressure is transmitted backward to the pulmonary veins → pulmonary edema ### Why Pulmonary Edema Develops | Mechanism | Normal Heart | This Patient (Systolic HF) | | --- | --- | --- | | **Systolic emptying** | 60–70% ejection fraction | 28% ejection fraction | | **Residual volume** | Normal | Markedly increased | | **LVEDP** | 5–12 mmHg | >18 mmHg (often >25) | | **Pulmonary capillary pressure** | <18 mmHg | >18 mmHg → edema | | **Early diastolic filling** | Rapid, compliant | Rapid but into stiff, dilated chamber | | **S3 timing** | Absent | Present (early diastole) | **Clinical Pearl:** The S3 gallop is a **clinical marker of elevated LVEDP**. When you hear S3, think "elevated filling pressures" → pulmonary edema is likely present or imminent. ### Pathophysiology Timeline in This Patient 1. **Acute anterior MI** → necrosis of anterior wall myocardium 2. **Loss of contractility** → ejection fraction drops to 28% 3. **Systolic dysfunction** → ventricle cannot empty normally 4. **Increased residual volume** → ventricle becomes dilated 5. **Diastolic dysfunction secondary** → dilated ventricle is non-compliant 6. **Rapid filling phase** → blood enters dilated, stiff ventricle 7. **LVEDP rises** → pressure transmitted backward 8. **Pulmonary capillary pressure exceeds oncotic pressure** → transudation into alveoli 9. **Orthopnea and dyspnea** → clinical manifestation ### Why S3 Occurs in Early Diastole The S3 sound is generated by the abrupt deceleration of blood flow as it hits the stiff ventricular wall during rapid filling. In this patient, the anterior wall is akinetic (non-contractile), and the remaining myocardium is stretched and non-compliant. The rapid filling phase is when the ventricle receives the largest volume of blood in the shortest time, generating maximal wall vibration → S3. [cite:Harrison 21e Ch 227; Robbins 10e Ch 11]
