A 58-year-old man from Delhi presents to the emergency department with acute onset chest pain radiating to the left arm. On examination, his blood pressure is 165/95 mmHg, heart rate 102/min, and a loud S4 gallop is heard at the apex. Echocardiography shows reduced left ventricular compliance with preserved ejection fraction. During cardiac catheterization, the left ventricular pressure tracing shows a prominent 'a' wave and a steep 'y' descent. Which phase of the cardiac cycle is most significantly affected in this patient?

Explanation

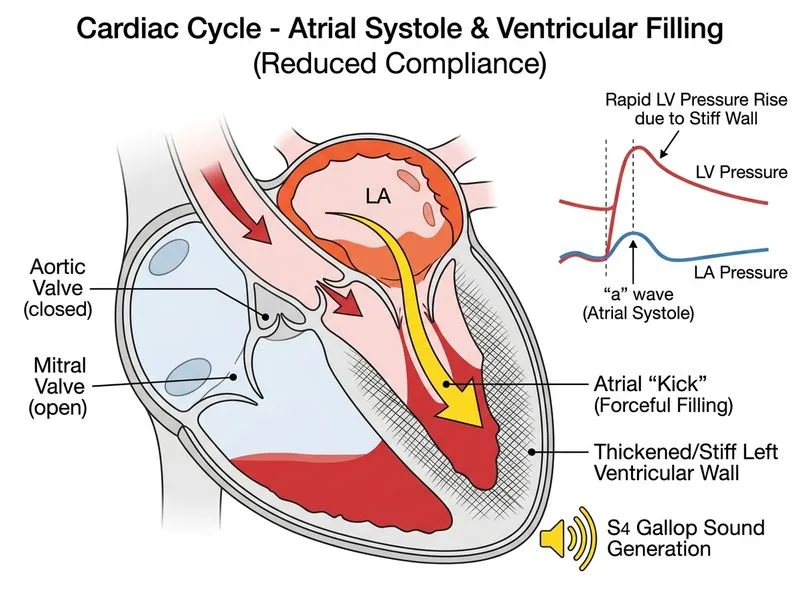

## Clinical Presentation Analysis This patient presents with features of **diastolic dysfunction** secondary to acute coronary syndrome with resultant myocardial stiffness. ### Key Hemodynamic Findings **Key Point:** The prominent 'a' wave (atrial kick) and steep 'y' descent on left ventricular pressure tracing are pathognomonic for impaired ventricular relaxation and reduced compliance. **Clinical Pearl:** In restrictive physiology (reduced LV compliance), the atrium must generate greater pressure to fill the stiff ventricle — hence the exaggerated 'a' wave. The steep 'y' descent reflects rapid atrial emptying into a non-compliant chamber. ### Cardiac Cycle Phases Explained | Phase | Duration | Events | Pressure Changes | |-------|----------|--------|------------------| | **Atrial Systole** | ~100 ms | Atrial contraction; 'a' wave generated | ↑ LA pressure; prominent 'a' wave | | Isovolumetric Contraction | ~40 ms | All valves closed; pressure ↑ | Rapid LV pressure rise | | Rapid Ventricular Filling | ~150 ms | Mitral valve opens; passive filling | Steep 'y' descent (normal) | | Isovolumetric Relaxation | ~60 ms | All valves closed; pressure ↓ | LV pressure falls without volume change | ### Why Atrial Systole Is Most Affected 1. **Exaggerated 'a' wave** — The atrium compensates for poor ventricular compliance by contracting more forcefully, generating abnormally high pressure. 2. **S4 gallop** — Audible manifestation of forceful atrial contraction against a stiff ventricle (occurs late in diastole, just before S1). 3. **Atrial kick contribution** — In diastolic dysfunction, the atrial contribution to LV filling increases from the normal 20–30% to >40%, making atrial systole critical for maintaining cardiac output. **High-Yield:** The S4 gallop is the clinical hallmark of atrial systole against a non-compliant ventricle. It occurs in hypertrophic cardiomyopathy, restrictive cardiomyopathy, and acute ischemia with stiffness. ### Mnemonic for Diastolic Dysfunction Waves **"A-wave Atrial, X-descent eXit, V-wave Venous, Y-descent emptY"** - Prominent **'a' wave** = forceful atrial contraction (atrial systole) - Steep **'y' descent** = rapid atrial emptying into ventricle (passive filling phase) [cite:Harrison 21e Ch 233]
