A 35-year-old man sustains a comminuted tibia fracture. At 6 weeks post-injury, radiographs show minimal callus formation and persistent fracture line. Which finding best distinguishes hypertrophic non-union from atrophic non-union?

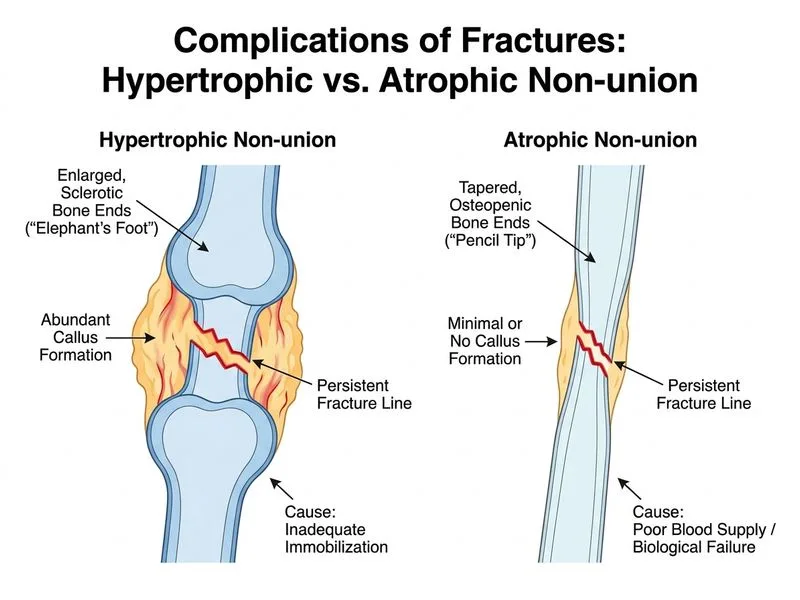

## Hypertrophic vs. Atrophic Non-Union ### Pathophysiological Distinction Non-union occurs when fracture healing ceases before bony union is achieved. The two main types differ fundamentally in their biological response to the fracture. ### Key Discriminating Feature **Key Point:** **Hypertrophic non-union** is characterized by **abundant callus formation** at the fracture ends with a persistent fracture line. The biological response is vigorous but mechanically inadequate due to excessive motion or poor fracture reduction. In contrast, **atrophic non-union** shows minimal or absent callus, indicating a poor biological response. ### Comparison Table | Feature | Hypertrophic Non-Union | Atrophic Non-Union | | --- | --- | --- | | **Callus formation** | Abundant, exuberant | Minimal or absent | | **Radiographic appearance** | "Elephant foot" or "horse hoof" callus | Wide fracture gap, sclerotic bone ends | | **Fracture gap** | Narrow to moderate | Wide | | **Biological response** | Vigorous but mechanically inadequate | Poor/inadequate | | **Primary cause** | Excessive motion, poor reduction | Infection, soft tissue damage, avascular necrosis | | **Prognosis** | Better; responds to immobilization/fixation | Poorer; requires biological stimulation | | **Treatment** | Rigid fixation (compression plating, intramedullary nailing) | Bone grafting + fixation | ### High-Yield Mnemonic **Mnemonic: HYPER-HYPER** — **Hypertrophic** = **Hyper**-abundant callus (good biology, bad mechanics) **Mnemonic: ATRO-ATRO** — **Atrophic** = **Atro**phied/absent callus (bad biology) ### Clinical Pearl **Clinical Pearl:** The **radiographic appearance is the gold standard for distinguishing these types**. Hypertrophic non-union shows a characteristic "elephant foot" or "horse hoof" appearance with bulky callus; atrophic non-union shows a sclerotic, avascular-appearing bone ends with minimal callus. ### Pathophysiological Basis **Hypertrophic Non-Union:** 1. Fracture ends are in contact or near-contact 2. Biological response is intact (good blood supply, osteogenic potential) 3. Excessive micromotion prevents bridging callus from mineralizing 4. Result: Abundant but mechanically weak callus **Atrophic Non-Union:** 1. Fracture ends are separated or avascular 2. Biological response is compromised (poor blood supply, infection, soft tissue loss) 3. Insufficient osteogenic stimulus 4. Result: Minimal callus formation ### Treatment Implications **Hypertrophic:** Responds to **rigid fixation** (compression plating, intramedullary nailing) — the biology is intact; mechanics need correction. **Atrophic:** Requires **bone grafting + rigid fixation** — biology must be restored. **Warning:** Do not confuse hypertrophic non-union with delayed union. Delayed union is a temporary delay in healing that eventually progresses to union; hypertrophic non-union is a failure to progress despite abundant callus.
