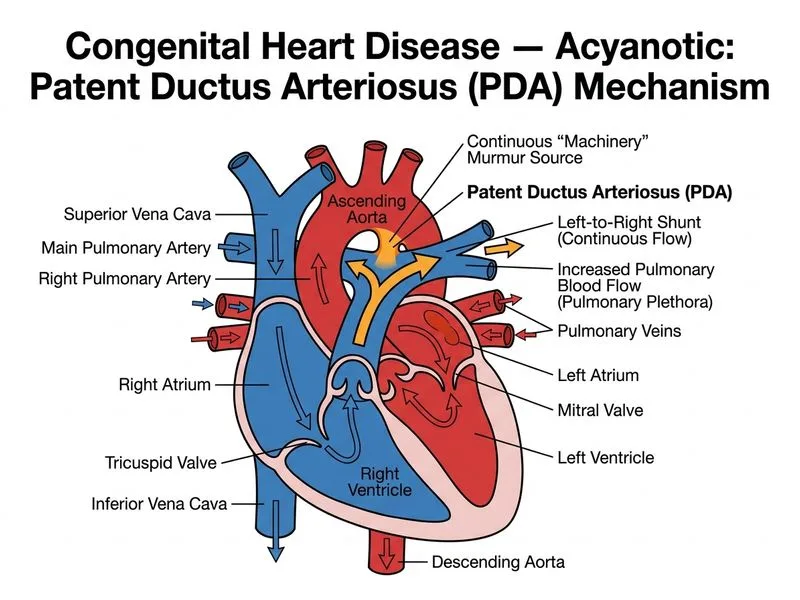

## Clinical Diagnosis The continuous 'machinery' murmur at the left infraclavicular region is pathognomonic for **patent ductus arteriosus (PDA)**, a left-to-right shunt lesion. The clinical presentation of recurrent infections, failure to thrive, cardiomegaly, and pulmonary plethora confirms hemodynamically significant left-to-right shunting. ## Investigation of Choice **Key Point:** Transthoracic echocardiography with color Doppler is the gold standard, non-invasive investigation for diagnosis and hemodynamic assessment of PDA. ### Why Echocardiography? 1. **Direct visualization** of the patent ductus arteriosus 2. **Color Doppler** demonstrates left-to-right shunt across the ductus 3. **Quantifies shunt severity** via: - Left atrial to aortic root ratio (LA:Ao) - Left ventricular end-diastolic dimension (LVEDD) - Ductal diameter and flow velocity 4. **Assesses chamber dilation** and ventricular function 5. **Non-invasive, no radiation**, safe in children 6. **Guides management** — determines need for medical (indomethacin/ibuprofen) vs. surgical closure ## Role of Other Investigations | Investigation | Role in PDA | Limitation | | --- | --- | --- | | Chest X-ray | Shows cardiomegaly, pulmonary plethora | Cannot visualize ductus or quantify shunt | | ECG | May show LVH if chronic shunt | Non-specific; does not diagnose PDA | | Cardiac catheterization | Invasive hemodynamic assessment | Reserved for complex cases or therapeutic intervention; not first-line | | Barium swallow | Not indicated | No role in PDA diagnosis | **High-Yield:** In a child with a continuous murmur and signs of left-to-right shunt, echocardiography is both diagnostic AND therapeutic in terms of guiding management — it is the single most important test.
