A 4-year-old girl from Mumbai presents with recurrent respiratory tract infections and mild dyspnea on exertion. Cardiac examination reveals a systolic ejection murmur at the right upper sternal border with a fixed, widely split S2. Echocardiography shows an ostium secundum atrial septal defect (ASD). Her pediatrician mentions that this differs significantly from coarctation of the aorta. Which finding best discriminates ASD from coarctation of the aorta?

Explanation

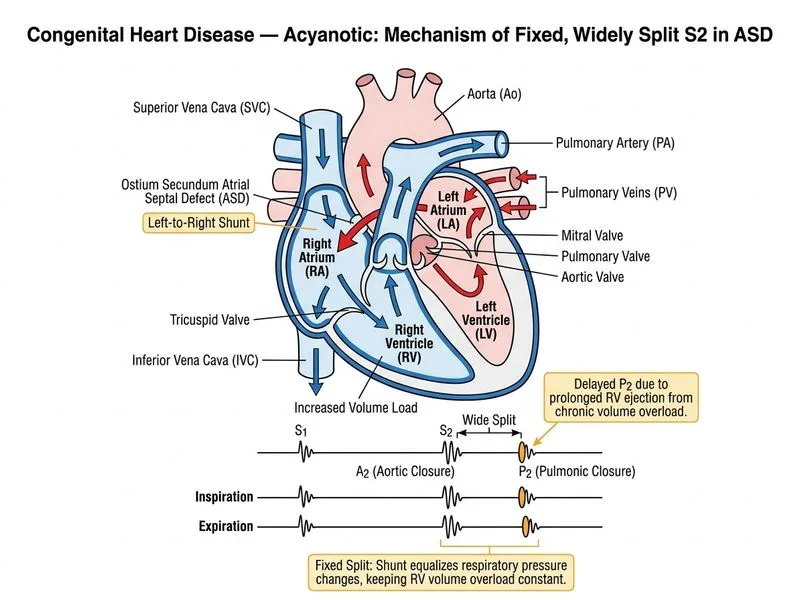

## Distinguishing ASD from Coarctation of the Aorta ### The Fixed, Widely Split S2: Hallmark of ASD **Key Point:** The fixed, widely split second heart sound (S2) is the most specific and discriminating feature of ASD. It results from increased right ventricular stroke volume (due to left-to-right shunt) and delayed closure of the pulmonary valve, combined with normal aortic valve closure. ### Mechanism of Fixed, Widely Split S2 in ASD 1. **Left-to-right shunt** at the atrial level increases RV preload 2. **Increased RV stroke volume** prolongs RV ejection time 3. **Delayed pulmonary valve closure** (P2 component of S2 occurs later) 4. **Normal aortic valve closure** (A2 component remains at baseline) 5. **Result:** Widened A2-P2 interval that does **NOT vary with respiration** (fixed) **Clinical Pearl:** The split S2 in ASD is "fixed" because it does not widen further with inspiration (unlike normal physiologic splitting, which widens with inspiration due to increased RV preload). This fixed quality is virtually pathognomonic for ASD. ### Comparison Table: ASD vs Coarctation of the Aorta | Feature | ASD | Coarctation of Aorta | |---------|-----|----------------------| | **S2 splitting** | Fixed, widely split | Normal (no abnormal split) | | **Systolic murmur location** | Right upper sternal border (pulmonary area) | Left infraclavicular region | | **BP in upper extremities** | Normal | Elevated (hypertension) | | **BP in lower extremities** | Normal | Low (hypotension) | | **Femoral pulse** | Normal | Diminished/delayed | | **Rib notching** | Absent | Present (from collateral vessels) | | **LVH on ECG** | Absent or mild | Prominent | | **Shunt direction** | Left-to-right (acyanotic) | No shunt (obstruction) | ### Why Coarctation Does NOT Produce Fixed, Widely Split S2 Coarctation is an **obstructive lesion** (narrowing of the aorta), not a shunt. It does not alter RV hemodynamics or stroke volume. The S2 remains normal because aortic and pulmonary valve closure times are unaffected. The murmur in coarctation is a **systolic ejection murmur** heard over the left infraclavicular region and back (from turbulent flow across the narrowed segment), not from a shunt. **High-Yield:** On auscultation, if you hear a widely split S2 that does NOT narrow with expiration (fixed), immediately think ASD. Coarctation has a normal S2. **Mnemonic:** **"ASD = Fixed Split"** — the shunt increases RV volume, delaying P2; the split is fixed (does not vary with breathing) because the shunt is constant. [cite:Harrison 21e Ch 282]
