A 6-month-old infant with known tetralogy of Fallot (TOF) presents with a 'Tet spell'—sudden-onset severe cyanosis, dyspnea, and loss of consciousness. After initial resuscitation with oxygen, knee-chest positioning, and morphine, the episode resolves. The parents ask about the anatomic basis of the cyanosis and whether the child needs surgery. Which investigation is most appropriate to assess the severity of the right ventricular outflow tract obstruction and guide timing of surgical repair?

Explanation

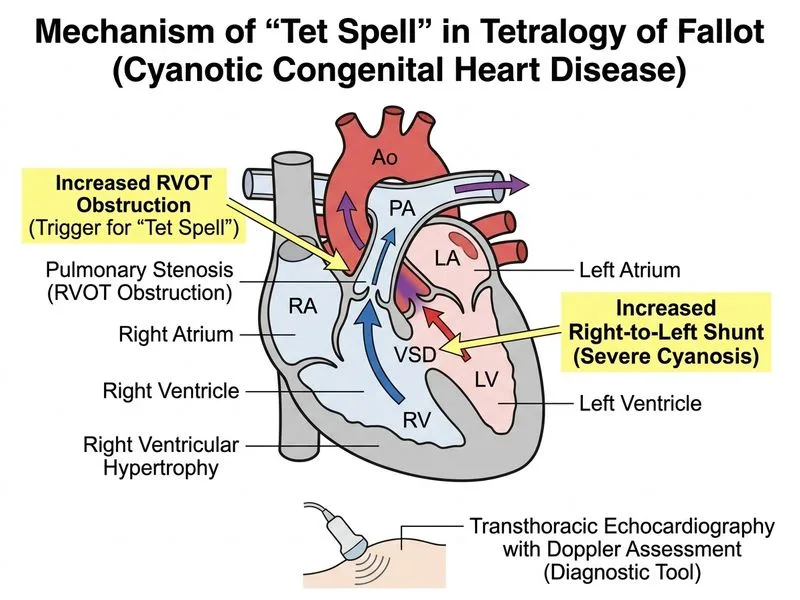

## Clinical Context Tetralogy of Fallot (TOF) is the most common cyanotic congenital heart defect. A 'Tet spell' (hypercyanotic episode) is a life-threatening acute increase in right-to-left shunting due to increased right ventricular outflow tract (RVOT) obstruction. Assessment of RVOT severity is critical for determining surgical timing. ## Investigation of Choice: Transthoracic Echocardiography with Doppler **Key Point:** Echocardiography with Doppler is the first-line, non-invasive investigation for assessing the degree of RVOT obstruction and guiding surgical decision-making in TOF. ### Why Echocardiography is Optimal for TOF Assessment | Parameter Assessed | Clinical Significance | |-------------------|----------------------| | **RVOT obstruction severity** | Doppler gradient across pulmonary valve; guides need for early repair | | **Ventricular septal defect (VSD) size** | Large unrestricted VSD = complete right-to-left shunt | | **Right ventricular hypertrophy** | Degree of RV pressure overload | | **Pulmonary artery size** | Hypoplasia indicates need for careful surgical planning | | **Associated lesions** | Atrial septal defect, patent foramen ovale, aortic override | | **Aortic root diameter** | Aortic root dilation is common in TOF; important for surgical planning | **High-Yield:** In TOF, the **pulmonary valve gradient** (measured by continuous-wave Doppler) directly reflects RVOT obstruction severity. A gradient >60 mmHg or recurrent Tet spells are indications for surgical repair (Blalock-Taussig shunt or primary repair). ## Mnemonic for TOF Anatomy **RVOT** = **R**ight ventricular **O**utflow **T**ract obstruction (pulmonary stenosis), **V**entricular septal defect, **O**verride of aorta, **R**ight ventricular hypertrophy. ## Clinical Pearl **Key Point:** Echocardiography allows bedside, real-time assessment of shunt direction (color Doppler) and hemodynamic severity without radiation or sedation. This is essential for determining whether the infant needs immediate surgical intervention or can be managed medically with beta-blockers and prostaglandin E₁ to keep the ductus arteriosus patent (in severe cases). ## Why Echocardiography Precedes Other Modalities 1. **Quantifies RVOT obstruction** — Doppler gradient is the key determinant of surgical timing 2. **Non-invasive and rapid** — can be repeated serially to monitor progression 3. **Guides medical vs. surgical management** — mild obstruction may be managed conservatively; severe obstruction requires early repair 4. **No radiation** — safe for serial follow-up in infants
