A 3-year-old boy with cyanotic heart disease is brought to the pediatric cardiology clinic. On examination, he has clubbing of fingers, a single loud S2, and a systolic ejection murmur at the left upper sternal border. Chest X-ray shows a 'boot-shaped' heart. Which single feature best distinguishes Tetralogy of Fallot from Transposition of the Great Arteries in this clinical context?

Explanation

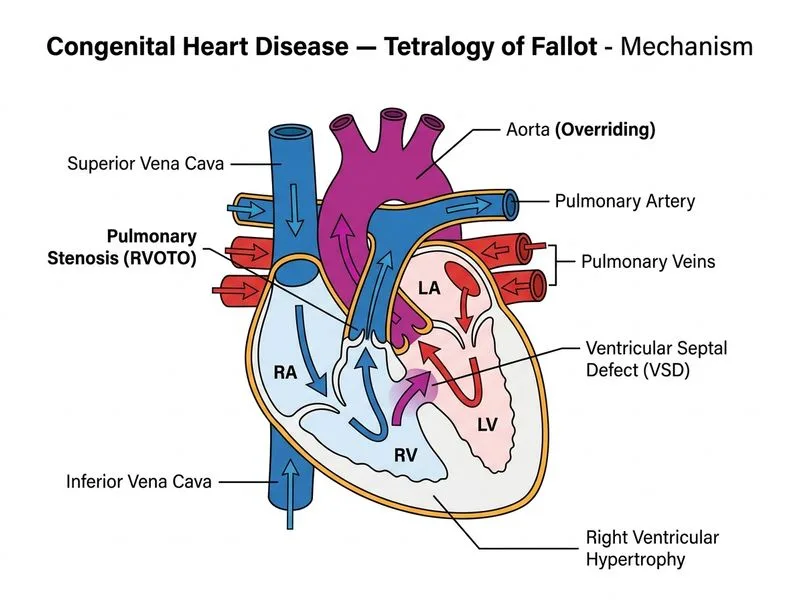

## Distinguishing TOF from TGA ### Key Anatomical Difference **Key Point:** Right ventricular outflow tract (RVOT) obstruction — specifically pulmonary stenosis — is the pathognomonic feature that distinguishes Tetralogy of Fallot from Transposition of the Great Arteries (TGA). ### Comparative Features | Feature | Tetralogy of Fallot | Transposition of Great Arteries | |---------|-------------------|----------------------------------| | **RVOT obstruction** | **Present (pulmonary stenosis)** | **Absent** | | Cyanosis onset | Days to weeks (progressive) | **First hours of life (severe)** | | S2 character | Single loud (due to aortic override) | Single loud (anterior aorta) | | Clubbing | Present (older children) | Present (if untreated) | | Boot-shaped heart | Yes (TOF classic) | Egg-on-string appearance | | Murmur quality | Systolic ejection (RVOT obstruction) | No murmur or soft PDA murmur | ### Clinical Pathophysiology **High-Yield:** In TOF, the degree of cyanosis is **directly proportional to the severity of pulmonary stenosis**. The stenosis forces deoxygenated blood from the RV to shunt right-to-left through the VSD, bypassing the lungs. Without RVOT obstruction, you have a simple left-to-right shunt (acyanotic) — this is not TOF. In TGA, cyanosis results from **complete separation of pulmonary and systemic circulations** (aorta arises from RV, pulmonary artery from LV), not from obstruction. The degree of cyanosis depends on mixing at the PDA, ASD, or foramen ovale level. ### Clinical Pearl **Clinical Pearl:** A child with cyanotic heart disease and a **systolic ejection murmur at the left upper sternal border** (indicating RVOT turbulence) almost always has TOF. TGA typically presents with **minimal or no murmur** because blood flow is not obstructed — it is misdirected. ### Mnemonic **Mnemonic:** **RVOT = Right Ventricular Outflow Tract obstruction = Tetralogy Of Fallot**. No RVOT obstruction → not TOF.
