A 58-year-old man with COPD presents to the emergency department with acute dyspnea and productive cough for 3 days. Chest X-ray shows a homogeneous opacity in the right lower lobe with air bronchograms visible within the opaque area. The hilum and costophrenic angle on the right side are normal. Which of the following best describes the radiological finding?

Explanation

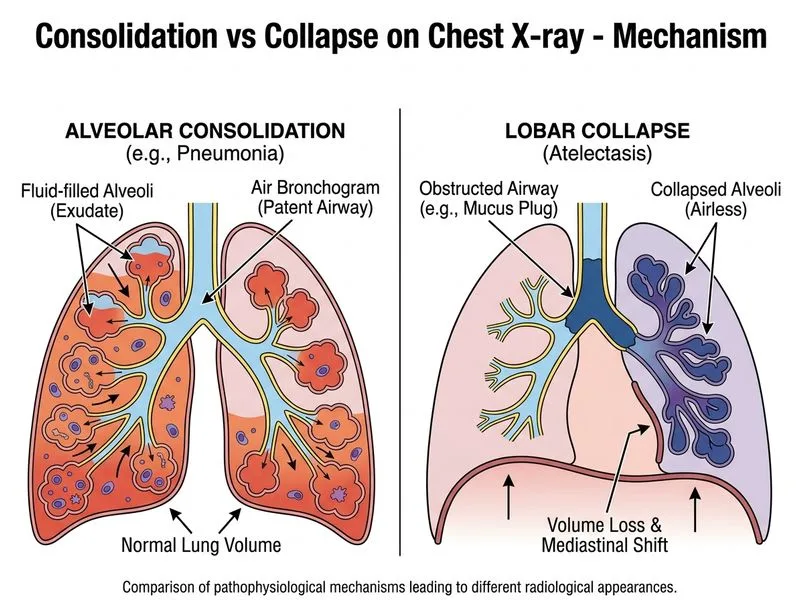

## Radiological Diagnosis: Consolidation ### Key Distinguishing Features **Key Point:** The presence of air bronchograms within an opaque area is pathognomonic for consolidation, not collapse. Air bronchograms represent air-filled bronchi silhouetted against consolidated alveolar tissue. ### Consolidation vs Collapse: Comparative Table | Feature | Consolidation | Collapse | |---------|---|---| | **Air bronchograms** | Present ✓ | Absent ✗ | | **Hilum position** | Normal | Displaced toward lesion | | **Costophrenic angle** | Sharp/normal | Blunted | | **Mediastinal shift** | None | Yes (toward collapsed lobe) | | **Volume** | Normal or increased | Decreased | | **Cause** | Alveolar filling (pus, blood, edema) | Airway obstruction or pleural disease | ### Clinical Context **High-Yield:** In a COPD patient with acute dyspnea and productive cough, the clinical presentation is consistent with **bacterial pneumonia** causing alveolar consolidation. The radiological finding of air bronchograms confirms this diagnosis. **Clinical Pearl:** Air bronchograms are visible only when consolidated lung is in contact with patent airways. This finding strongly suggests alveolar process (pneumonia, pulmonary edema, aspiration) rather than airway obstruction. ### Why This Is NOT Collapse - **Normal hilum and costophrenic angle:** Collapse would show hilar displacement toward the affected lobe and blunting of the costophrenic angle due to volume loss. - **Preserved volume:** The description indicates normal anatomical relationships, ruling out the volume loss characteristic of atelectasis. [cite:Felson's Principles of Chest Roentgenology Ch 3]
