A 62-year-old man with a history of left-sided lung cancer presents with progressive dyspnea over 2 weeks. Chest X-ray shows a homogeneous opacity in the left upper lobe with obscuration of the left heart border. The left hemidiaphragm is elevated and shifted medially. No air bronchograms are visible within the opacified area. What is the most likely radiological finding?

Explanation

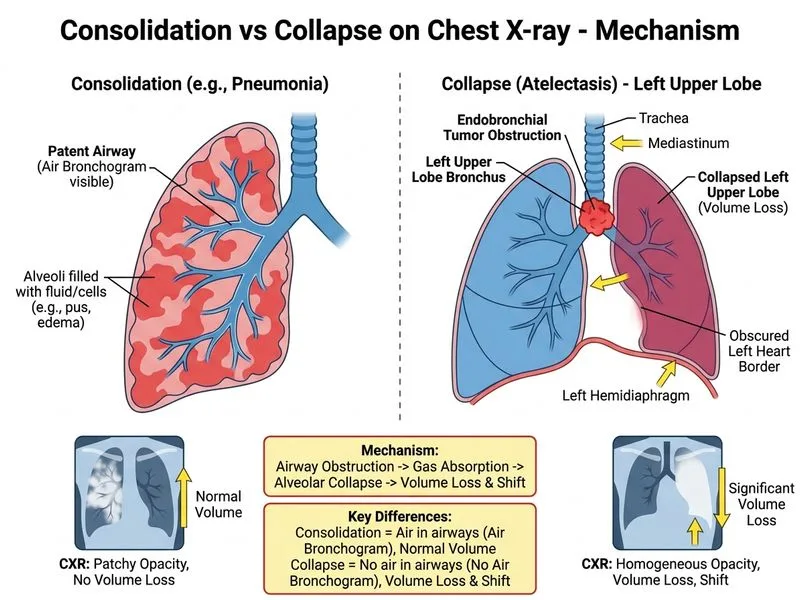

## Radiological Diagnosis: Collapse ### Key Distinguishing Features **Key Point:** The combination of **obscuration of the left heart border (silhouette sign), volume loss (elevated and medially shifted hemidiaphragm), and ABSENCE of air bronchograms** is diagnostic of collapse, not consolidation. **High-Yield:** Silhouette sign + volume loss + no air bronchograms = collapse (airway obstruction). ### Consolidation vs Collapse: Radiographic Criteria | Feature | Consolidation | Collapse | |---------|---|---| | **Silhouette sign** | Absent (borders clear) | Present (borders obscured) | | **Volume** | Normal or increased | Decreased (lobe shrinks) | | **Hemidiaphragm position** | Normal | Elevated (upper lobe collapse) or depressed (lower lobe collapse) | | **Mediastinal shift** | None | Toward collapsed lobe | | **Air bronchograms** | Present (diagnostic) | Absent | | **Mechanism** | Alveolar filling (exudate, blood, edema) | Airway obstruction or fibrosis | ### Clinical Context: Why Collapse Here? **Silhouette Sign Explanation:** The silhouette sign occurs when an opacity in the lung is contiguous with the heart border, obliterating the normal interface. In left upper lobe collapse, the collapsed lobe lies anterior to the heart, causing obscuration of the left heart border. **Volume Loss Indicators:** - Elevated left hemidiaphragm - Medial shift of the mediastinum - These indicate loss of lung volume, characteristic of collapse **Absence of Air Bronchograms:** No air bronchograms are visible because the airways are obstructed (by tumor) or collapsed, preventing air from reaching the distal alveoli. This is the key differentiator from consolidation. **Clinical Pearl:** In a patient with known lung cancer, progressive dyspnea with these radiographic findings suggests endobronchial tumor obstruction causing lobar collapse — a common complication of advanced malignancy. **Mnemonic:** **COLLAPSE = Consolidation Loss, Airway Plugged, Pleural pressure shift, Silhouette sign, Elevated diaphragm** ### Why Not Post-Obstructive Pneumonia? While post-obstructive pneumonia (consolidation) can occur distal to a tumor, the **absence of air bronchograms** and **presence of volume loss** point to collapse as the primary finding. If consolidation were superimposed, air bronchograms would be visible. [cite:Felson's Principles of Chest Roentgenology Ch 3]
