A 58-year-old post-operative patient on mechanical ventilation develops acute hypoxemia. Chest X-ray shows opacity in the left lower lobe with the left hemidiaphragm elevated and the heart and mediastinum shifted toward the left. Which finding most reliably indicates atelectasis rather than consolidation?

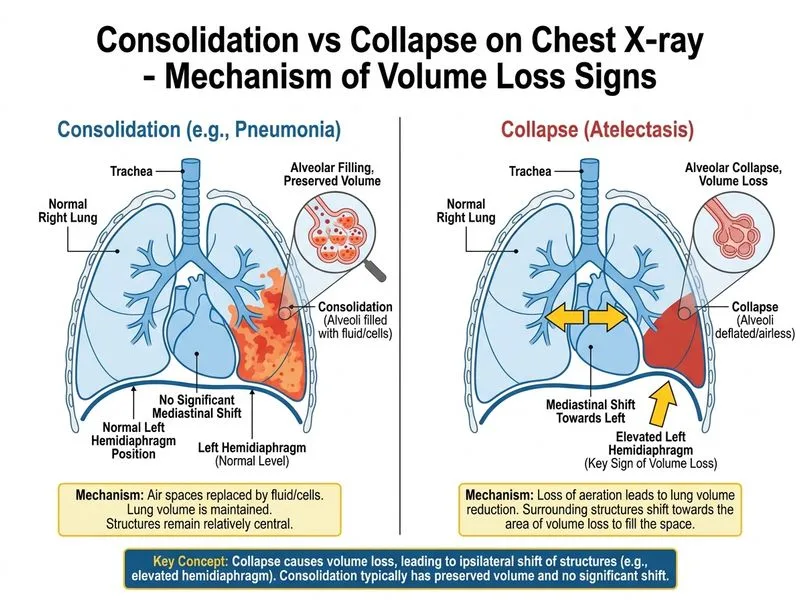

## Volume Loss: The Key to Atelectasis Diagnosis **Key Point:** Elevation of the hemidiaphragm on the affected side indicates volume loss, which is the hallmark of atelectasis, not consolidation. ### Pathophysiology of Atelectasis-Induced Changes Atelectasis (collapse) results in **loss of lung volume**, which causes: 1. **Hemidiaphragm elevation** — the diaphragm rises because the underlying lung has lost volume 2. **Mediastinal shift toward affected side** — the mediastinum is pulled toward the collapsed lung 3. **Rib spacing narrowing** — ribs on the affected side may appear closer together 4. **Hilum displacement** — the hilum moves toward the area of collapse These are all **secondary signs of volume loss** and collectively distinguish atelectasis from consolidation. ### Detailed Comparison: Volume Loss Signs | Sign | Atelectasis | Consolidation | | --- | --- | --- | | **Hemidiaphragm elevation** | **Present (volume loss)** | Normal position | | Mediastinal shift | Toward affected side | Away from affected side (or no shift) | | Rib spacing | Narrowed | Normal | | Hilum displacement | Toward collapse | Normal or away | | Cardiac silhouette | Shifted toward affected side | Shifted away or normal | | Overall lung volume | **Decreased** | Normal or increased | **High-Yield:** Hemidiaphragm elevation = volume loss = atelectasis. This is the most reliable single sign on frontal chest X-ray. **Mnemonic:** **CHASED** — signs of atelectasis (volume loss): - **C**ardiac shift (toward affected side) - **H**emidiaphragm elevation - **A**ir bronchogram (usually absent) - **S**ilhouette sign (may be present) - **E**xtension of opacity to hilum - **D**isplacement of fissures **Clinical Pearl:** In post-operative patients on mechanical ventilation, atelectasis is the most common cause of acute hypoxemia. Look for hemidiaphragm elevation as the smoking gun.
