A 62-year-old man with chronic kidney disease (eGFR 28 mL/min/1.73 m²) requires imaging of his abdominal aorta to rule out aneurysm. He has a history of contrast-induced nephropathy (CIN) after a previous coronary angiography. Which investigation is most appropriate for this patient?

Explanation

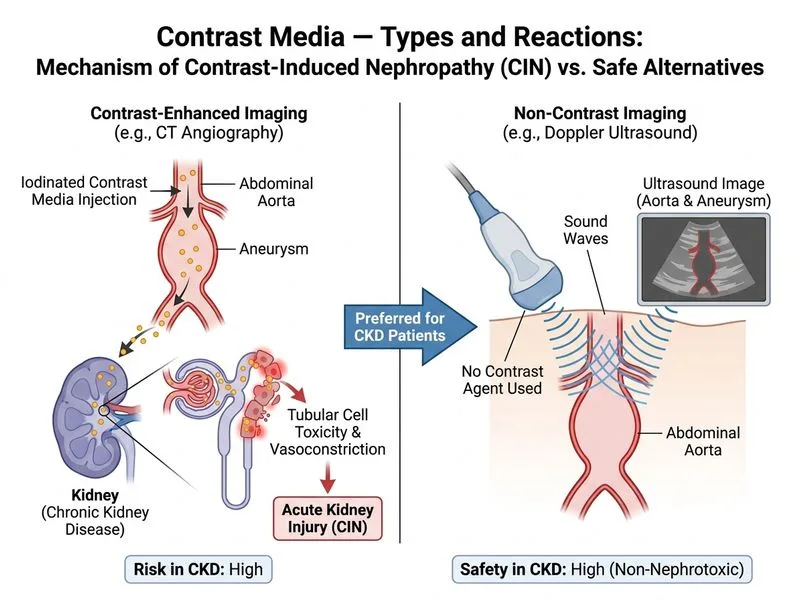

## Investigation of Choice in High-Risk Contrast Nephropathy ### Clinical Context This patient has multiple risk factors for contrast-induced nephropathy: - Advanced CKD (eGFR 28) - Prior history of CIN - Planned vascular imaging ### Why Doppler Ultrasound is Optimal **Key Point:** In patients with severe renal impairment and prior CIN, non-contrast imaging modalities are preferred to avoid further renal injury. **High-Yield:** Doppler ultrasound is: - Non-invasive and non-nephrotoxic - Excellent for detecting AAA (sensitivity 95–98% for AAA >3 cm) - Real-time assessment of flow dynamics - No contrast medium required - Operator-dependent but highly accurate in experienced hands ### Why Contrast-Enhanced CT is Suboptimal Here | Contrast Type | Osmolality | Risk in CKD | Recommendation | |---|---|---|---| | HOCM (iopamidol, iohexol) | >1400 mOsm/kg | **Very high** — avoid | Contraindicated in severe CKD | | LOCM (iopamidol) | 600–850 mOsm/kg | Moderate | Better than HOCM, but still risky | | IOCM (osmolarity = plasma) | ~290 mOsm/kg | Lower risk | Marginally safer, but not ideal | **Clinical Pearl:** Even IOCM does not eliminate CIN risk in patients with eGFR <30 and prior CIN. The safest approach is avoidance of all iodinated contrast. ### Why MR Angiography with Gadolinium is Not First-Line **Warning:** Gadolinium carries risk of **nephrogenic systemic fibrosis (NSF)** in patients with eGFR <30 mL/min/1.73 m², especially with linear gadolinium agents. Although modern macrocyclic agents are safer, they are still relatively contraindicated in severe renal failure. ### Algorithm for Imaging in Severe CKD ```mermaid flowchart TD A[Patient with eGFR < 30 + prior CIN]:::outcome A --> B{Imaging needed?}:::decision B -->|Yes| C{Can non-contrast modality answer the question?}:::decision C -->|Yes| D[Use non-contrast imaging<br/>Ultrasound, unenhanced CT, MRI]:::action C -->|No| E{Absolutely requires contrast?}:::decision E -->|Yes| F[Minimize contrast dose<br/>Use IOCM or LOCM<br/>IV hydration + N-acetylcysteine]:::action E -->|No| G[Defer or use alternative]:::action D --> H[Doppler US for AAA]:::outcome ``` **Key Point:** Doppler ultrasound is the investigation of choice for AAA screening and diagnosis in patients with contraindications to iodinated contrast.
