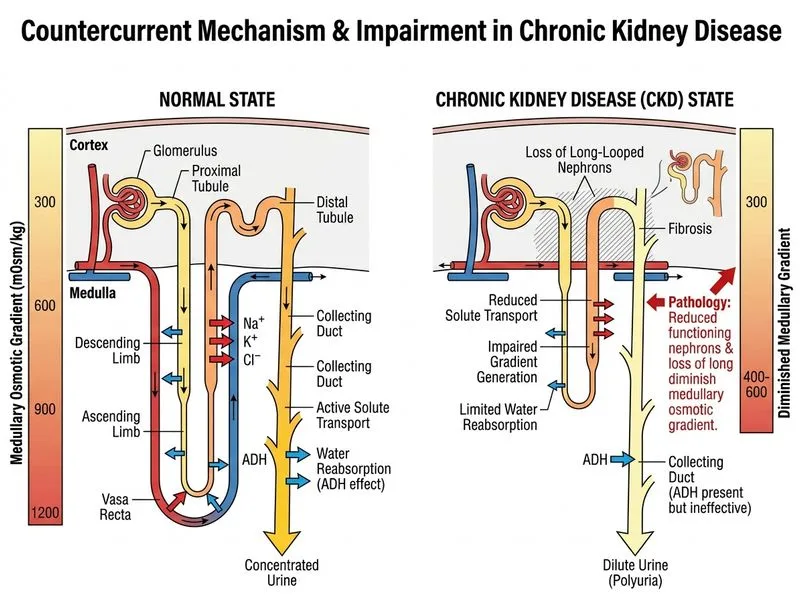

## Nephrogenic Diabetes Insipidus in Chronic Kidney Disease ### The Paradox: High ADH, Dilute Urine This patient has **nephrogenic diabetes insipidus (NDI)** secondary to chronic kidney disease. Despite elevated ADH levels and intact ADH signaling (water deprivation test shows no response), she cannot concentrate urine. The defect lies in the **countercurrent mechanism infrastructure**, not in ADH action. **Key Point:** Chronic kidney disease causes progressive loss of nephrons, particularly the long-looped juxtamedullary nephrons that extend deep into the medulla. These nephrons are essential for generating and maintaining the steep osmotic gradient. ### Why Long-Looped Juxtamedullary Nephrons Matter 1. **Depth of Loop Determines Gradient Magnitude** - Long-looped nephrons extend deep into the medullary papilla (up to 12 mm). - Short-looped cortical nephrons extend only to the outer medulla (~3 mm). - The deeper the loop, the greater the osmotic gradient that can be generated. 2. **Countercurrent Multiplier Efficiency** - Each pass through the loop of Henle multiplies the osmotic gradient by ~200 mOsm/kg. - Long loops make many passes; short loops make fewer. - Loss of long-looped nephrons reduces the **maximum achievable medullary osmolarity**. 3. **In CKD: Progressive Loss of Juxtamedullary Nephrons** - CKD causes preferential loss of juxtamedullary nephrons (which are more metabolically active and vulnerable to ischemia). - Remaining cortical nephrons have shorter loops and cannot generate steep gradients. - Result: **medullary osmolarity drops from ~1200 mOsm/kg (normal) to ~400–500 mOsm/kg (CKD)**. **High-Yield:** Even with maximal ADH stimulation, the collecting duct can only reabsorb water down to the osmolarity of the surrounding medullary interstitium. If that gradient is shallow, urine remains dilute. ### Why Other Options Are Wrong in This Context - **Vasa recta loss** (option A) would impair gradient preservation, but the primary problem in CKD is gradient generation, not preservation. - **NKCC2 defect** (option C) would cause Bartter syndrome (genetic), not CKD-related NDI. In CKD, NKCC2 function is relatively preserved; the problem is fewer nephrons to perform the function. - **Aquaporin-2 defect** (option D) would cause central NDI unresponsive to ADH, but this patient's high ADH levels indicate intact signaling — the problem is downstream (gradient availability). ### Mnemonic: LOOP-LOSS Rule **L** — **L**ong-looped nephrons lost in CKD **O** — **O**smotic gradient diminished **O** — **O**utcome: dilute urine despite ADH **P** — **P**erfusion of medulla compromised **L** — **L**ess medullary osmolarity **O** — **O**smoreceptors stimulate ADH (but it cannot help) **S** — **S**tructurally intact collecting duct, functionally impaired by shallow gradient **S** — **S**econdary nephrogenic DI ### Table: Causes of NDI and Their Mechanism | Cause | Defect Site | Mechanism | ADH Level | Response to Water Deprivation | | --- | --- | --- | --- | --- | | **CKD (this patient)** | Loop of Henle / medullary architecture | Loss of long-looped nephrons → shallow gradient | **↑ Elevated** | **No response** | | Aquaporin-2 mutation | Collecting duct | Water channel absent | ↑ Elevated | No response | | Lithium toxicity | Collecting duct | Impaired V2 receptor signaling | ↑ Elevated | No response | | Vasopressin receptor mutation | Collecting duct | V2 receptor defective | ↑ Elevated | No response | | Medullary washout | Medullary interstitium | Excessive loop diuretic use | ↑ Elevated | No response | ### Clinical Pearl: Medullary Osmolarity in Disease States - **Normal kidney:** Medullary osmolarity ~1200 mOsm/kg → urine osmolarity up to 1200 mOsm/kg. - **CKD (moderate):** Medullary osmolarity ~500 mOsm/kg → urine osmolarity capped at ~500 mOsm/kg. - **CKD (severe) + loop diuretics:** Medullary osmolarity ~300 mOsm/kg → urine osmolarity ~300 mOsm/kg (isosthenuric). ```mermaid flowchart TD A["Chronic Kidney Disease"]:::outcome A --> B["Progressive nephron loss"]:::action B --> C{"Which nephrons lost first?"}:::decision C -->|"Preferentially: Juxtamedullary"|D["Long-looped nephrons ↓"] C -->|"Spared: Cortical"|E["Short-looped nephrons remain"] D --> F["Depth of loop ↓"]:::action E --> F F --> G["Countercurrent multiplier passes ↓"]:::action G --> H["Medullary osmotic gradient ↓"]:::action H --> I["Max medullary osmolarity: 1200 → 400 mOsm/kg"]:::outcome J["ADH released (osmoreceptors sense ↑ osmolality)"]:::action J --> K["Collecting duct becomes permeable to water"]:::action K --> L{"Water can reabsorb to what osmolarity?"}:::decision L -->|"Limited by medullary gradient"|M["Urine osmolarity capped at 400 mOsm/kg"]:::urgent M --> N["Nephrogenic DI: High ADH, Dilute Urine"]:::outcome ```
