A 2-day-old term newborn is found to have a continuous 'machinery' murmur at the left infraclavicular region. Which feature best distinguishes a patent ductus arteriosus (PDA) from a secundum atrial septal defect (ASD) in terms of hemodynamic shunt direction and timing?

Explanation

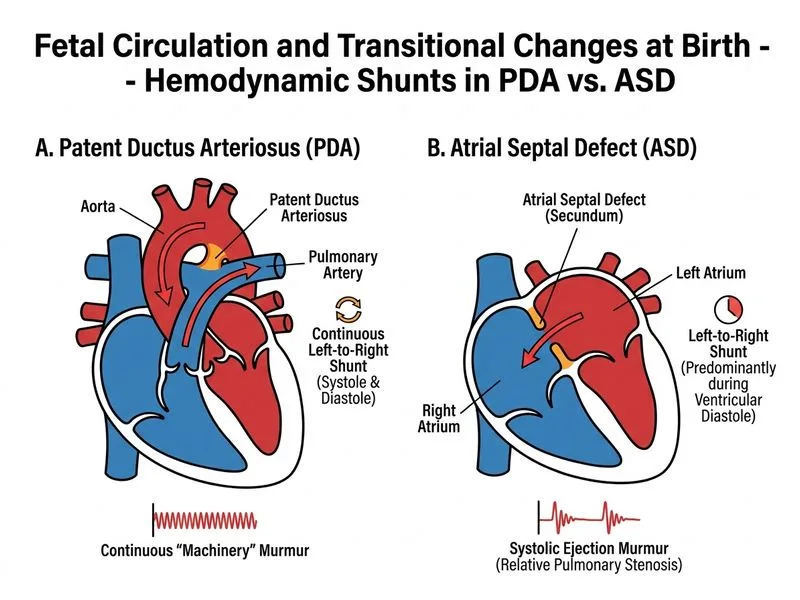

## Patent Ductus Arteriosus vs. Atrial Septal Defect: Hemodynamic Distinction ### Shunt Direction and Driving Mechanism **Key Point:** The most fundamental hemodynamic distinction between PDA and ASD lies in the *pressure gradient* that drives the shunt. In PDA, the shunt is driven by the systemic-to-pulmonary artery pressure gradient (aorta ~80–120 mmHg vs. PA ~15–25 mmHg). In ASD, the shunt is driven by the difference in atrial compliance and pressure gradients between the left and right atria. | Feature | Patent Ductus Arteriosus (PDA) | Atrial Septal Defect (ASD) | |---------|-------------------------------|----------------------------| | **Primary Shunt Driver** | Systemic-to-pulmonary pressure gradient | Atrial compliance + pressure gradient | | **Shunt Direction** | Left-to-right (Aorta → PA) | Left-to-right (LA → RA) | | **Murmur Character** | Continuous 'machinery' / 'Gibson' murmur | Systolic ejection murmur (increased RV output); fixed split S₂ | | **Pulse Pressure** | Wide (bounding pulses) | Normal | | **S₂** | Normal or widely split | Fixed, widely split | ### Why Option A is Correct **High-Yield:** In PDA, the aortic pressure exceeds pulmonary artery pressure throughout the cardiac cycle, creating a continuous left-to-right shunt driven purely by the systemic-to-pulmonary pressure gradient. In ASD, the shunt magnitude and direction are governed by the *relative compliance* of the right versus left ventricle and the atrial pressure gradients — the right ventricle is more compliant, so the RA accepts more blood from the LA, producing a net left-to-right shunt. This compliance-based mechanism is the defining hemodynamic feature of ASD. ### Why Option D is Incorrect **Clinical Pearl:** Option D states that ASD shunt occurs "only during ventricular diastole," which is factually imprecise. The ASD shunt is actually maximal during *ventricular systole* (when the AV valves are closed and atrial filling occurs), not ventricular diastole. The shunt in ASD is driven by atrial compliance differences and is not restricted to ventricular diastole. This inaccuracy makes Option D an incorrect distinguishing feature. ### Why Options B and C are Incorrect - **Option B** describes secondary clinical signs (bounding pulses, wide pulse pressure) rather than the primary hemodynamic mechanism distinguishing the two lesions. - **Option C** is factually wrong: PDA produces a *continuous* (not purely systolic) murmur, and ASD produces a *systolic* ejection murmur (not diastolic). **Mnemonic:** **PDA = Pressure-Driven Aortic shunt** — driven by the systemic-to-pulmonary pressure gradient. **ASD = Atrial compliance-driven Shunt Defect** — driven by differential atrial compliance and pressure. [cite: Harrison 21e Ch 282; Braunwald's Heart Disease 12e Ch 62]
