A 52-year-old man with a history of previous abdominal surgery presents with acute abdominal pain and vomiting. Plain abdominal radiograph shows dilated small bowel loops with air-fluid levels. Which imaging feature best distinguishes small bowel obstruction from large bowel obstruction?

Explanation

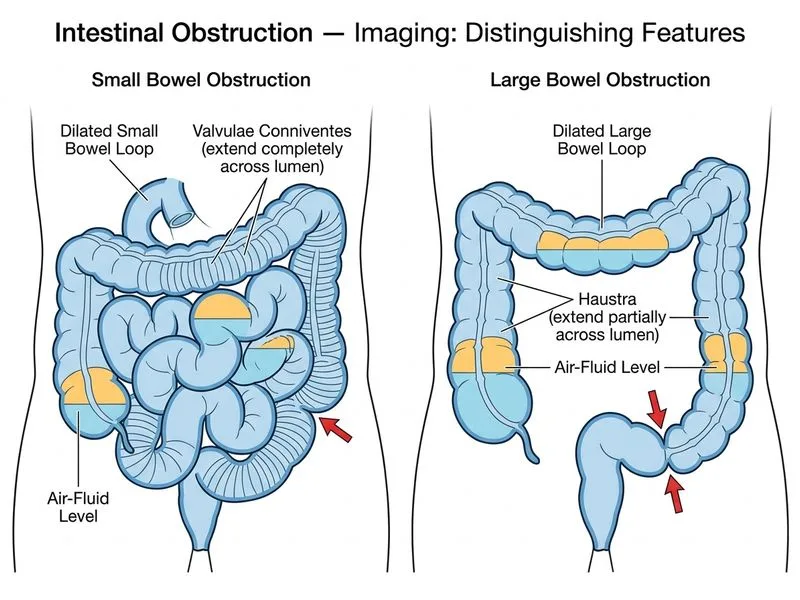

## Distinguishing Small Bowel from Large Bowel Obstruction on Plain Radiography ### Key Anatomical Features **Key Point:** Valvulae conniventes (plicae circulares) are the most specific discriminating feature between small and large bowel obstruction on plain radiographs. | Feature | Small Bowel | Large Bowel | |---------|------------|-------------| | **Valvulae conniventes** | Present, extend completely across lumen | Absent | | **Haustra** | Absent | Present, do not cross entire width | | **Diameter** | <3 cm (normal) | 6–8 cm (normal) | | **Location** | Central, clustered | Peripheral, distributed | | **Wall thickness** | Thin | Thicker | ### Why Valvulae Conniventes Are the Gold Standard 1. **Anatomical basis**: Valvulae conniventes are mucosal folds that completely traverse the small bowel lumen, creating a characteristic "stack of coins" appearance on frontal radiographs. 2. **Specificity**: This finding is pathognomonic for small bowel involvement and is absent in large bowel obstruction. 3. **Reliability**: Unlike haustra (which may be indistinct in dilated colon), valvulae remain visible even when the small bowel is moderately dilated. **High-Yield:** On plain radiography, if you see folds that completely cross the bowel width = small bowel; if you see folds that do NOT cross the entire width = large bowel (haustra). ### Clinical Correlation **Clinical Pearl:** In this patient's case, the presence of valvulae conniventes extending across the entire lumen confirms small bowel obstruction, likely due to adhesions from prior surgery (most common cause of small bowel obstruction in developed countries). ### Additional Imaging Considerations - **CT enterography** is superior for identifying the site and cause of obstruction (transition point, volvulus, hernia, malignancy). - **Diameter criterion** (>3 cm for small bowel, >6 cm for colon) is less specific because both can dilate in obstruction. - **Air-fluid levels** occur in both small and large bowel obstruction and are non-discriminatory. [cite:Robbins & Cotran 10e Ch 17]
