A 58-year-old man with a 10-year history of type 2 diabetes presents with acute-onset severe left lower limb pain, pallor, and absent femoral pulse. Temperature is 37.2°C. Blood pressure is 165/95 mmHg. Serum creatinine is 1.8 mg/dL. The patient is hemodynamically stable. Which imaging modality is the investigation of choice to confirm acute limb ischemia and guide immediate management?

Explanation

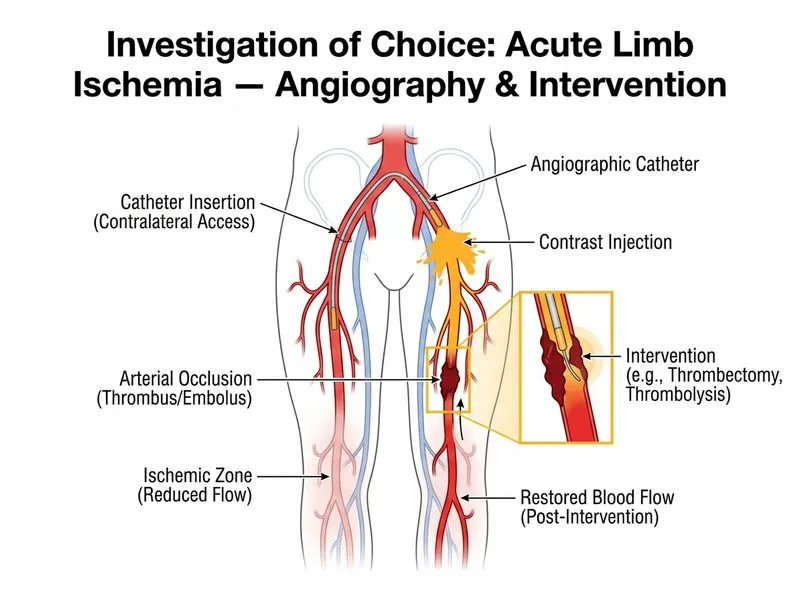

## Clinical Scenario: Acute Limb Ischemia The presentation—sudden onset of severe limb pain, pallor, absent femoral pulse, and risk factors (diabetes, hypertension)—is consistent with **acute arterial occlusion**, likely due to thromboembolism or acute thrombosis of atherosclerotic plaque. ## Investigation of Choice **Key Point:** Conventional angiography (digital subtraction angiography) is the gold standard for acute limb ischemia because it provides **definitive diagnosis AND immediate intervention capability**. ### Why Conventional Angiography? 1. **High spatial resolution** — identifies the exact site and nature of occlusion (thrombus vs. embolus vs. dissection) 2. **Therapeutic capability** — allows same-session intervention: - Catheter-directed thrombolysis (tPA, urokinase) - Mechanical thrombectomy - Angioplasty ± stent - Embolectomy guidance 3. **Real-time visualization** — dynamic assessment of collateral circulation and runoff vessels 4. **Speed** — in acute ischemia (salvage window 6–8 hours), time is critical; angiography eliminates diagnostic delay 5. **No contraindication in renal impairment** — despite elevated creatinine (1.8), urgent intervention justifies contrast use with hydration ## Mnemonic: **SALVAGE** **S** – Speed (time-critical diagnosis) **A** – Angiography (definitive imaging) **L** – Lysis/intervention (same-session treatment) **V** – Visualization (real-time flow assessment) **A** – Acute occlusion (indication) **G** – Guide intervention **E** – Emergent management ## Comparison of Modalities | Modality | Sensitivity | Intervention | Time | Renal Risk | Role in Acute Ischemia | |----------|-------------|--------------|------|------------|------------------------| | **Duplex ultrasound** | Operator-dependent; poor for distal vessels | None | 30–60 min | None | Screening only; too slow for acute | | **CT angiography** | High (>95%) | None | 10–15 min | Contrast nephropathy risk | Diagnosis if angiography unavailable; not therapeutic | | **Conventional angiography** | Gold standard (100%) | Yes (thrombolysis, thrombectomy, PTA) | 30–45 min | Acceptable with hydration | **First-line for acute ischemia** | | **MR angiography** | High; no contrast needed | None | 45–60 min | Contraindicated if eGFR <30 | Not suitable for acute; too slow | **Clinical Pearl:** In acute limb ischemia, the "golden period" for limb salvage is 6–8 hours. Conventional angiography is preferred because it combines diagnosis and intervention, reducing time to reperfusion. CT angiography is acceptable if angiography is unavailable or if the diagnosis is uncertain, but it does not allow immediate intervention. **High-Yield:** Acute limb ischemia is a vascular emergency. Conventional angiography is the investigation of choice because it is **diagnostic AND therapeutic**, allowing immediate catheter-directed thrombolysis or mechanical thrombectomy without delay for a second procedure.
