A 35-year-old woman presents with jaundice, fever, and right upper quadrant pain for 3 days. Serum bilirubin is 6.8 mg/dL (conjugated 5.2 mg/dL), ALT 680 U/L, AST 520 U/L, ALP 145 U/L. Abdominal ultrasound shows dilated intrahepatic and extrahepatic bile ducts with a 12 mm stone in the common bile duct. Which investigation is most appropriate to confirm the diagnosis and plan definitive management?

Explanation

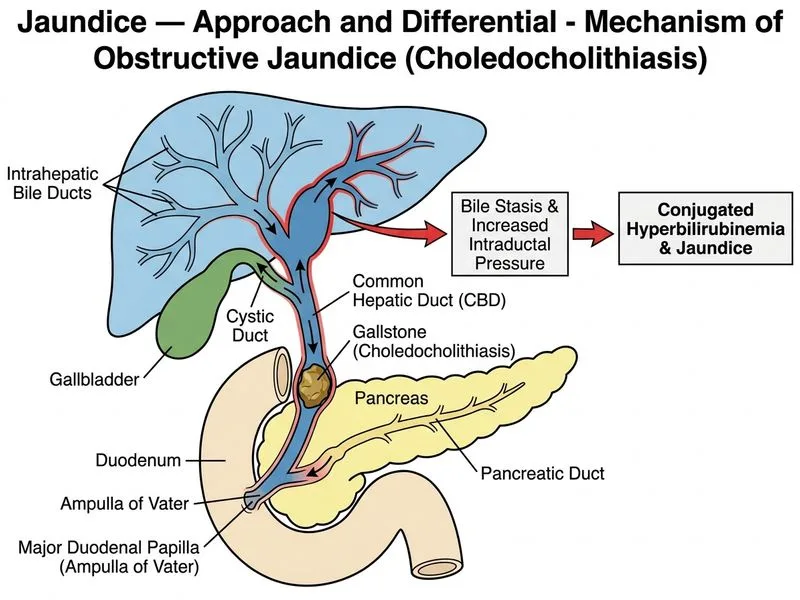

## Investigation of Choice for Suspected Choledocholithiasis ### Clinical Context The patient presents with: - Acute cholangitis triad: fever, jaundice, RUQ pain - Markedly elevated transaminases (ALT 680, AST 520) — hepatocellular pattern - Conjugated hyperbilirubinemia - **Ultrasound findings: dilated ducts + CBD stone 12 mm** This is **acute obstructive jaundice** due to **choledocholithiasis** (CBD stone). ### Why MRCP? **Key Point:** MRCP is the **non-invasive imaging gold standard** for confirming choledocholithiasis and assessing the biliary tree anatomy because it: 1. Has **high sensitivity (90–95%) and specificity (95–98%)** for CBD stones 2. Visualizes the entire biliary tree and pancreatic duct in detail 3. Detects stone size, number, and location precisely 4. Is **non-invasive** (no endoscopy, no contrast injection into ducts) 5. Identifies complications: strictures, dilated ducts, pancreatitis 6. **Guides decision-making**: if stone confirmed, proceed to ERCP for therapeutic removal **High-Yield:** MRCP is the **bridge investigation** between ultrasound (which shows obstruction) and ERCP (which is therapeutic). It confirms diagnosis and anatomy before intervention. ### Diagnostic Algorithm: Obstructive Jaundice with Suspected CBD Stone ```mermaid flowchart TD A[Jaundice + RUQ pain + fever]:::outcome --> B[Ultrasound]:::action B --> C{Dilated ducts + stone?}:::decision C -->|Yes| D[MRCP for confirmation & anatomy]:::action C -->|No| E[MRCP to rule out stone]:::action D --> F{Stone confirmed?}:::decision E --> G{Stone found?}:::decision F -->|Yes| H[ERCP + sphincterotomy + extraction]:::action G -->|No| I[Consider other causes: stricture, malignancy, pancreatitis]:::outcome H --> J[Symptom resolution]:::outcome ``` **Clinical Pearl:** In acute cholangitis (fever + jaundice + obstruction), ERCP is **both diagnostic and therapeutic**. However, MRCP is preferred first to confirm anatomy and stone presence, especially if ERCP is high-risk (altered anatomy, coagulopathy). In this case, MRCP confirms the diagnosis before proceeding to ERCP. ### Comparison of Investigations for CBD Stone | Investigation | Sensitivity | Specificity | Invasive? | Therapeutic? | Best Use | |---|---|---|---|---|---| | **Ultrasound** | 50–70% | 95% | No | No | Initial screening; detects dilation | | **MRCP** | 90–95% | 95–98% | No | No | **Gold standard for confirmation** | | **EUS** | 95–98% | 98–99% | Yes (endoscopy) | No | When MRCP unavailable; high sensitivity | | **CT** | 70–85% | 90% | No | No | Staging, complications, alternative diagnosis | | **HIDA scan** | 80–90% | 85% | No | No | Assesses biliary excretion; not for stone detection | | **ERCP** | 90–95% | 95% | Yes | **Yes** | **Therapeutic gold standard** | **Mnemonic:** **MRCP before ERCP** — Confirm (MRCP) before you Treat (ERCP). ### Why Not the Other Options? **EUS (Endoscopic Ultrasound):** - Has slightly higher sensitivity (95–98%) than MRCP for small stones - Is **invasive** (requires endoscopy) - Does **not** visualize the entire biliary tree (limited field) - Operator-dependent - Reserved for cases where MRCP is equivocal or unavailable **CT Abdomen:** - Sensitivity only 70–85% for CBD stones - Less detailed than MRCP for biliary anatomy - Useful for staging complications (pancreatitis, perforation) but not diagnostic confirmation **HIDA Scan (Hepatobiliary Scintigraphy):** - Assesses **biliary excretion and cystic duct patency** (useful for acute cholecystitis) - Does **not detect stones** reliably - Poor spatial resolution - Not indicated for suspected choledocholithiasis **Tip:** Remember the **investigation hierarchy for obstructive jaundice**: 1. **Ultrasound** → detects dilation, rules in/out obstruction 2. **MRCP** → confirms diagnosis, assesses anatomy 3. **ERCP** → therapeutic intervention (stone removal, stent placement) **Warning:** Do not confuse MRCP (diagnostic imaging) with ERCP (therapeutic endoscopy). MRCP is the **investigation of choice** for confirmation; ERCP is the **treatment of choice** for stone removal.
