A 14-year-old boy with known nasopharyngeal angiofibroma (Fisch Stage IIIa) is scheduled for endoscopic excision. Preoperative imaging shows the tumor extends into the infratemporal fossa and involves the pterygoid plates. The interventional radiologist is preparing for embolization. Which vessel is the PRIMARY target for superselective catheterization and embolization?

Explanation

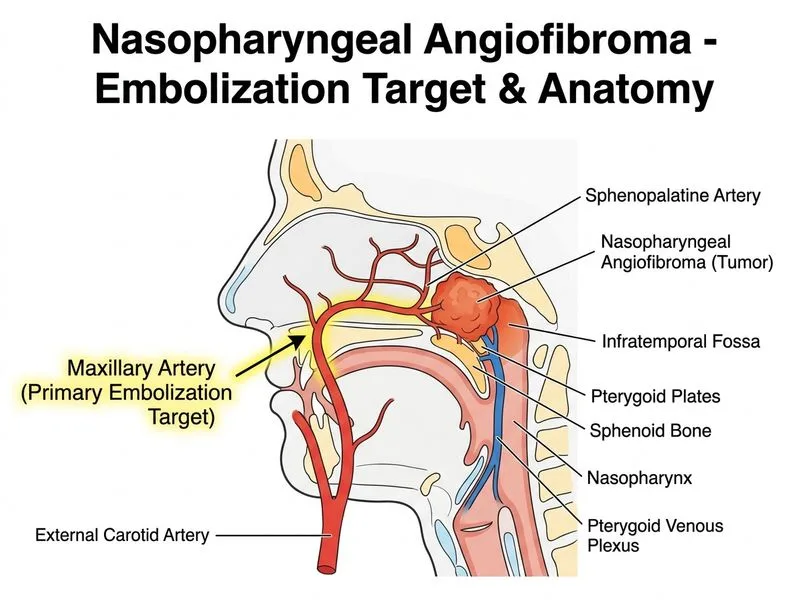

## Vascular Supply and Embolization Target in NAF ### Embryologic and Vascular Basis **Key Point:** Nasopharyngeal angiofibroma arises from the superior aspect of the sphenoid rostrum and the roof of the nasopharynx, at the junction of the vomer and sphenoid. Its blood supply is derived primarily from the **maxillary artery** (terminal branch of the external carotid artery). ### Why Maxillary Artery is the Primary Target **High-Yield:** The maxillary artery supplies NAF via: 1. **Sphenopalatine artery** (terminal branch of maxillary) — supplies the tumor body and nasopharyngeal mucosa 2. **Posterior superior alveolar artery** — supplies the pterygoid plates and infratemporal extension 3. **Infraorbital and descending palatine arteries** — collateral supply **Clinical Pearl:** Superselective catheterization of the maxillary artery (or even more distally into the sphenopalatine artery) allows: - Selective devascularization of the tumor - Preservation of the external carotid artery and its other branches (facial, lingual, occipital) - Reduced ischemic complications to normal tissues - Embolization material (polyvinyl alcohol particles, coils, or glue) is deployed distal to the origin of the middle meningeal artery to avoid intracranial ischemia ### Vascular Supply Hierarchy ```mermaid flowchart TD A[External Carotid Artery]:::outcome A --> B[Maxillary Artery]:::action B --> C[Sphenopalatine Artery]:::action C --> D[Primary tumor supply]:::outcome B --> E[Posterior Superior Alveolar Artery]:::action E --> F[Pterygoid/infratemporal extension]:::outcome A --> G[Other branches: Facial, Lingual, Occipital]:::action G --> H[Preserved during selective embolization]:::outcome ``` ### Why Other Vessels Are Not Primary Targets | Vessel | Role in NAF | Why Not Primary Target | | --- | --- | --- | | **Internal Carotid Artery** | Minimal/no direct supply to NAF | Embolizing ICA risks stroke; ICA involvement is rare and indicates advanced disease (Fisch Stage IV). | | **Anterior Ethmoidal Artery** | Supplies anterior ethmoid sinuses, not NAF | Transnasal approach is anatomically difficult and risks ophthalmic artery occlusion. Not a primary feeder. | | **Ascending Pharyngeal & Occipital** | Potential collateral supply in advanced disease | These are secondary feeders; they become important only if maxillary artery is occluded or in recurrent disease. | **Warning:** Embolization of the ICA or anterior ethmoidal artery is associated with significant morbidity (stroke, vision loss) and is NOT standard practice for primary NAF. ### Embolization Technique 1. **Timing:** Performed 24–48 hours before surgery 2. **Approach:** Transfemoral catheterization under fluoroscopy 3. **Target:** Superselective catheterization of the maxillary artery (or sphenopalatine artery) 4. **Material:** Polyvinyl alcohol (PVA) particles (150–250 μm), coils, or n-butyl cyanoacrylate (NBCA) 5. **Endpoint:** Stasis of contrast in the tumor; no reflux into the external carotid artery **Mnemonic:** **MAX** = **M**axillary artery is **A**lways the target for **X**-ray guided embolization in NAF. [cite:Scott-Brown's Otorhinolaryngology Ch 33; Endovascular Surgery by Schneider & Lakin]
