A 28-year-old construction worker sustains a compound fracture of the right femur from a fall from scaffolding. The wound is heavily contaminated with soil and debris, the fracture is comminuted with bone loss, and peripheral pulses are intact. Which investigation is most appropriate to rule out occult vascular injury and guide definitive management?

Explanation

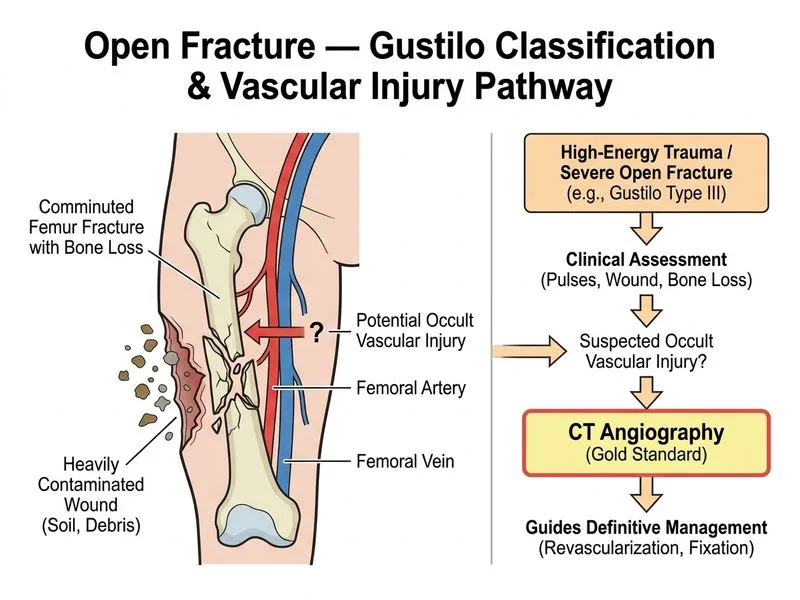

## Vascular Assessment in High-Energy Open Fractures ### Clinical Scenario Analysis This patient has features suggestive of **Type IIIB or IIIC** open fracture: - Heavy contamination (soil/debris) → high infection risk - Comminution with bone loss → severe soft tissue injury - Intact pulses on exam → does NOT exclude vascular injury **Key Point:** Intact pulses do **not** exclude arterial injury in high-energy trauma. Intimal injuries, partial lacerations, and vasospasm can present with normal distal perfusion initially. ### Why CT Angiography Is Indicated **High-Yield:** CT angiography is the **gold standard** for detecting vascular injury in open fractures when: 1. Mechanism is high-energy (fall from height) 2. Fracture is comminuted with significant soft tissue damage 3. Contamination suggests Type IIIB/C classification 4. Clinical examination alone is unreliable ### Investigation Comparison for Vascular Assessment | Investigation | Sensitivity | Specificity | Timing | Use Case | |---|---|---|---|---| | **Clinical exam (pulses, cap refill)** | 60–70% | High | Immediate | Screening only; misses intimal injury | | **ABI measurement** | 70–80% | Moderate | 10–15 min | Chronic PAD; unreliable in acute trauma | | **Duplex ultrasound** | 80–85% | High | 15–30 min | Operator-dependent; poor in edema | | **CT angiography** | 95–98% | 98% | 5–10 min | **Gold standard for acute trauma** | | **Intraoperative angiography** | 100% | 100% | During surgery | Therapeutic option if CT unavailable | **Clinical Pearl:** In a heavily contaminated, comminuted open fracture with high-energy mechanism, CT angiography should be obtained **before** surgical debridement if vascular injury is suspected. This allows pre-operative planning for vascular repair (defining Type IIIC status). ### Gustilo Type IIIC Definition **Mnemonic:** **IIIC = Vascular Injury** (regardless of soft tissue extent) - Requires vascular repair or reconstruction - Amputation rate approaches 50% even with repair - Defines the fracture as Type IIIC, not the soft tissue injury alone ### Timing and Workflow ```mermaid flowchart TD A[Open fracture with high-energy mechanism]:::outcome --> B{Vascular compromise on exam?}:::decision B -->|Yes: absent pulse, pale, cold| C[Immediate vascular surgery consult]:::urgent B -->|No: intact pulses but high-risk fracture| D[CT angiography]:::action D --> E{Vascular injury detected?}:::decision E -->|Yes| F[Vascular repair + fracture fixation]:::action E -->|No| G[Proceed to fracture debridement]:::action C --> H[Intraoperative angiography if CT unavailable]:::action ``` **Warning:** Do not rely on intact pulses to exclude vascular injury in high-energy open fractures. Intimal flaps, partial lacerations, and vasospasm can maintain distal flow initially but lead to thrombosis within hours.
