A 28-year-old woman with sickle cell disease presents with acute onset fever, bone pain in the femur, and elevated inflammatory markers. Plain radiographs are normal. Which investigation is most appropriate to diagnose osteomyelitis at this early stage?

Explanation

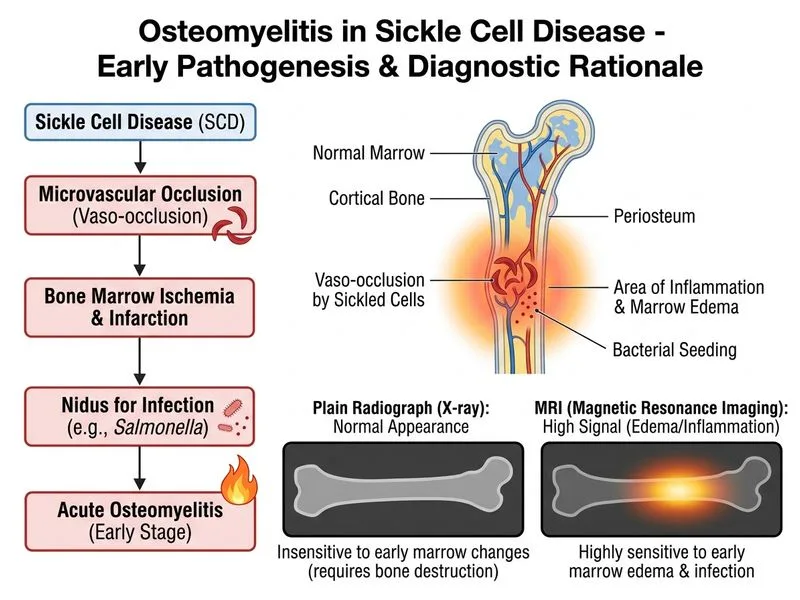

## Early Detection of Osteomyelitis: Imaging Modality Selection **Key Point:** MRI is the most sensitive imaging modality for detecting osteomyelitis in the early stage when plain radiographs are still normal. It demonstrates bone marrow edema before structural changes appear. ### Why MRI is Superior in Early Osteomyelitis **High-Yield:** MRI sensitivity for acute osteomyelitis is 90–100%, with changes visible within 24–48 hours of symptom onset—before plain radiographs show abnormalities. ### MRI Findings in Acute Osteomyelitis 1. **T1-weighted images:** Low signal intensity in bone marrow (edema, inflammation) 2. **T2-weighted/STIR images:** High signal intensity (edema, pus, inflammatory exudate) 3. **Contrast-enhanced MRI:** Enhancement of inflamed marrow and soft tissues 4. **Timeline:** Changes appear within 24–48 hours; plain radiographs lag by 7–10 days **Clinical Pearl:** In sickle cell disease, differentiating osteomyelitis from bone infarction is critical. MRI can help distinguish: - **Osteomyelitis:** Marrow edema with soft tissue involvement, cortical disruption - **Infarction:** Geographic, wedge-shaped areas; less soft tissue involvement ### Imaging Modality Comparison | Modality | Sensitivity (Early) | Specificity | Timeline | Organism ID | Best Use | |---|---|---|---|---|---| | **MRI** | 90–100% | 90–95% | 24–48 hrs | No | **Early diagnosis, soft tissue** | | CT | 70–80% | 75–85% | 3–5 days | No | Cortical detail, sequestra | | Tc-99m Bone Scan | 85–90% | 60–70% | 3–5 days | No | Non-specific, delayed | | In-111 Leukocyte Scan | 80–90% | 85–90% | 3–5 days | No | Chronic, subacute cases | **Mnemonic: MRIT** — **MRI** for **R**apid **I**maging in **T**hree-phase (early marrow edema)
