A 32-year-old male presents with a 6-month history of purulent discharge from a sinus tract over the tibia. X-ray shows a dense bone fragment within a radiolucent zone, surrounded by new cortical bone. Which feature best distinguishes this chronic osteomyelitis from acute haematogenous osteomyelitis of the same bone?

Explanation

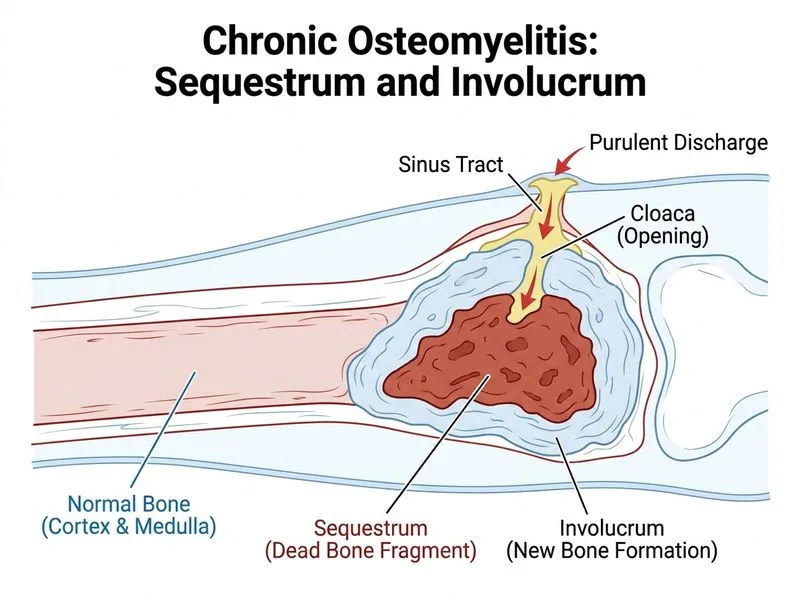

## Chronic Osteomyelitis: Radiological Hallmark ### The Gold Standard Discriminator **Key Point:** Sequestrum (dead bone) surrounded by involucrum (new bone) is the pathognomonic radiological finding that definitively distinguishes chronic osteomyelitis from acute disease. ### Why Radiological Features Trump Clinical Signs While sinus tract, absence of fever, and negative blood culture are ASSOCIATED with chronic osteomyelitis, they are not pathognomonic: - **Sinus tract:** Can occasionally form in acute disease if untreated; not specific to chronic - **Absence of fever:** Chronic disease is typically afebrile, but some acute cases may present with low-grade fever or no fever - **Negative blood culture:** Chronic osteomyelitis is culture-negative from blood, but acute disease may also be culture-negative if antibiotics were given or if infection is localized In contrast, **sequestrum and involucrum are ONLY seen in chronic osteomyelitis** and represent the pathological hallmark of bone necrosis walled off by new bone formation. ### Pathological Basis ```mermaid flowchart TD A[Acute Osteomyelitis]:::outcome --> B[Vascular compromise<br/>Bone necrosis begins] B --> C[Weeks to months pass] C --> D[Dead bone fragment<br/>Sequestrum forms]:::action D --> E[Periosteum lays down<br/>new cortical bone<br/>Involucrum]:::action E --> F[Chronic Osteomyelitis<br/>with Sequestrum +<br/>Involucrum]:::outcome F --> G[Sinus tract,<br/>chronic discharge]:::action ``` ### Radiological Appearance **High-Yield:** On X-ray: - **Sequestrum:** Dense (radio-opaque) bone fragment, often surrounded by lucency - **Involucrum:** New cortical bone shell around the sequestrum - **Cloacae:** Openings in involucrum where pus drains - **Sinus tract:** Soft tissue extension to skin These findings are virtually diagnostic of chronic osteomyelitis and do NOT occur in acute disease. ### Clinical Pearl **Clinical Pearl:** The presence of a sinus tract in this patient is a clinical clue, but the radiological confirmation of sequestrum and involucrum is the DEFINITIVE discriminator. A sinus tract alone could theoretically occur in an untreated acute infection; the radiological findings confirm chronicity. [cite:Robbins 10e Ch 26]
