A 58-year-old man with known cirrhosis presents with dyspnea and right-sided pleuritic chest pain. Chest X-ray shows a large right pleural effusion with blunting of the costophrenic angle. Ultrasound of the abdomen confirms ascites. Diagnostic thoracentesis is performed. The pleural fluid analysis shows: protein 2.8 g/dL, LDH 180 IU/L, serum protein 6.2 g/dL, serum LDH 420 IU/L. Which of the following radiological signs would be MOST helpful in differentiating this effusion from a parapneumonic effusion in the same patient who develops pneumonia?

Explanation

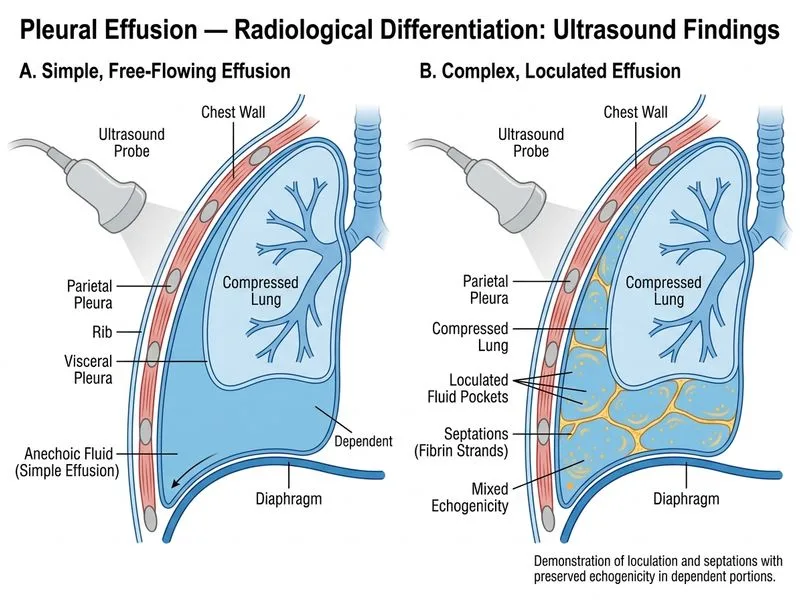

## Radiological Differentiation of Pleural Effusions ### Clinical Context This patient has a transudative pleural effusion secondary to cirrhosis (Light's criteria: protein ratio 2.8/6.2 = 0.45, LDH ratio 180/420 = 0.43 — both <0.5, confirming transudate). The question asks how to radiologically distinguish this from a **parapneumonic effusion** (exudative, associated with bacterial pneumonia) should the patient develop superimposed infection. ### Key Radiological Distinguishing Feature **Loculation and septations on ultrasound** are characteristic of **parapneumonic effusions**, particularly **empyema**. These findings reflect: - Fibrin deposition and adhesion formation between visceral and parietal pleura - Compartmentalization of infected fluid - Progressive organization of the inflammatory response In contrast, **simple transudates** (like hepatic hydrothorax) remain **anechoic, homogeneous, and non-loculated** on ultrasound, with clear dependent portions and no internal echoes. ### Why Ultrasound Loculation Matters **Preserved echogenicity in dependent portions** (option 1 describes this) is the critical detail: - **Transudates**: Anechoic throughout, no echoes in dependent areas - **Parapneumonic/Empyema**: Echogenic debris, fibrin strands, and locules visible even in dependent portions - This finding indicates **organized infection** and guides need for **chest tube drainage** (simple effusions may resolve with antibiotics alone) [cite:Robbins 10e Ch 15] ### Why Other Options Are Incorrect | Finding | Limitation | |---------|------------| | **Air-fluid level (option 0)** | Indicates **bronchopleural fistula** or gas-forming organism (rare); not specific for parapneumonic vs. transudative distinction | | **Meniscus sign (option 2)** | Present in **any** pleural effusion regardless of etiology; non-specific | | **Mediastinal shift (option 3)** | Occurs with **large effusions** of any type; depends on volume, not composition | ### Clinical Pearl **High-Yield:** Ultrasound is superior to CXR for detecting loculation and guiding thoracentesis in parapneumonic effusions. The presence of **echogenic material and septations** on ultrasound predicts need for **intervention** (chest tube ± fibrinolysis) and warrants **repeat imaging** to assess response. ### Mermaid Diagram: Radiological Approach to Pleural Effusion Differentiation ```mermaid flowchart TD A[Pleural Effusion on CXR]:::outcome --> B{Ultrasound performed}:::decision B -->|Anechoic, homogeneous| C[Simple Effusion]:::outcome C --> D[Transudate likely<br/>Hepatic, renal, cardiac]:::outcome B -->|Echogenic debris,<br/>loculations, septations| E[Complex Effusion]:::outcome E --> F{Clinical context}:::decision F -->|Fever + pneumonia| G[Parapneumonic/<br/>Empyema]:::urgent F -->|No infection signs| H[Hemorrhagic or<br/>malignant effusion]:::outcome G --> I[Chest tube drainage<br/>± fibrinolysis]:::action H --> J[Diagnostic thoracentesis<br/>+ cytology]:::action ```
