A 28-year-old male presents to the emergency department with acute onset right-sided chest pain and dyspnea after a fall from a 10-foot scaffold at a construction site. He is tachycardic (HR 118/min) and tachypneic (RR 28/min). Breath sounds are diminished on the right. A portable chest X-ray is obtained. Which radiological sign on the frontal CXR is most specific for diagnosing a pneumothorax in this patient?

Explanation

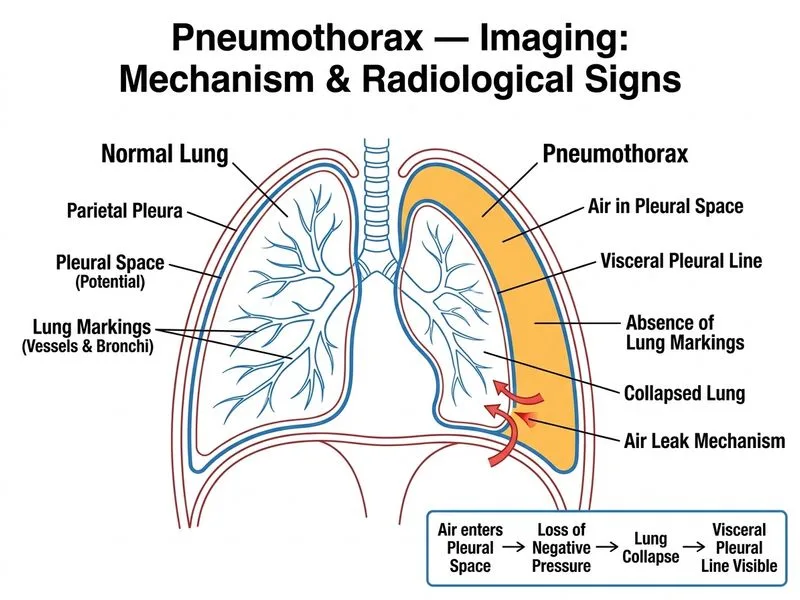

## Radiological Diagnosis of Pneumothorax ### The Visceral Pleural Line — Gold Standard Sign **Key Point:** The visceral pleural line (also called the lung edge or pleural stripe) is the most specific radiological sign for pneumothorax. It appears as a thin, sharp, white line representing the collapsed lung edge, with complete absence of lung markings (vessels, bronchi) in the space between this line and the chest wall. ### Why This Sign Is Definitive 1. **Pathophysiology**: When air enters the pleural space, the elastic recoil of lung tissue causes the visceral pleura to separate from the parietal pleura. This creates a lucent (dark) space between the pleural line and the chest wall. 2. **Radiological appearance**: The visceral pleura appears as a thin, curvilinear opacity; the space peripheral to it is devoid of vascular markings — a pathognomonic finding. 3. **Sensitivity and specificity**: This sign is highly specific (>95%) and becomes visible when pneumothorax volume exceeds ~200 mL. ### Other CXR Signs of Pneumothorax (Less Specific) | Sign | Appearance | Specificity | Notes | |------|-----------|------------|-------| | **Visceral pleural line** | Thin white line with absent peripheral markings | Very high (>95%) | **Gold standard** | | **Lung collapse** | Retracted lung at hilum | High | Indicates size | | **Deep sulcus sign** | Hyperlucency at costophrenic angle (supine films) | Moderate | Supine-specific; easy to miss | | **Mediastinal shift** | Tracheal/heart deviation | Low | Only in **tension** pneumothorax | | **Hyperinflation** | Flattened diaphragm | Very low | Non-specific; seen in COPD, asthma | **High-Yield:** On a frontal upright CXR, always scan the lung periphery systematically — the pleural line is often subtle and located at the lung edge, not centrally. ### Clinical Pearl In a supine or semi-erect patient (common in trauma/ICU), the **deep sulcus sign** (hyperlucency at the costophrenic angle) may be the only visible clue to pneumothorax. However, the visceral pleural line remains the most specific sign when visible. ### Imaging Algorithm for Suspected Pneumothorax ```mermaid flowchart TD A[Suspected pneumothorax]:::outcome --> B{Patient position?}:::decision B -->|Upright| C[Frontal CXR]:::action B -->|Supine/semi-erect| D[Look for deep sulcus sign]:::action C --> E{Visceral pleural line visible?}:::decision D --> F{Deep sulcus sign present?}:::decision E -->|Yes| G[Pneumothorax confirmed]:::outcome E -->|No, but high suspicion| H[CT chest or repeat upright film]:::action F -->|Yes| G F -->|No, high suspicion| H G --> I{Tension features?}:::decision I -->|Yes: tracheal shift, hemodynamic compromise| J[Needle decompression + chest tube]:::urgent I -->|No| K[Observation ± chest tube based on size/symptoms]:::action ``` [cite:Felson's Principles of Chest Roentgenology Ch 8]
