A 28-year-old male presents to the emergency department with acute onset right-sided chest pain and dyspnea. He denies trauma or recent illness. On examination, breath sounds are diminished on the right side, and percussion is hyperresonant. A chest X-ray is obtained in the upright position. Which radiological sign is MOST specific for diagnosing pneumothorax on this frontal radiograph?

Explanation

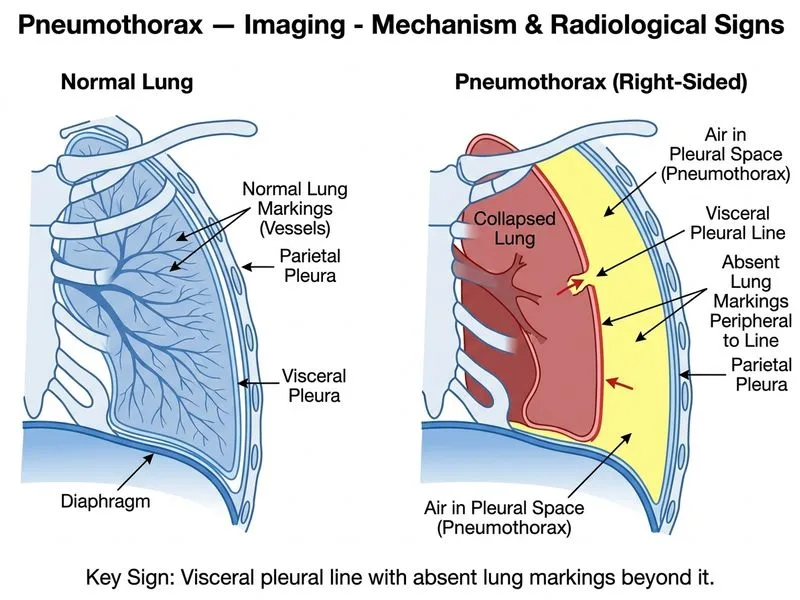

## Radiological Diagnosis of Pneumothorax ### Key Radiological Signs **Key Point:** The **visceral pleural line** (or pleural edge) is the pathognomonic sign of pneumothorax on chest X-ray. It appears as a thin, sharp, radiopaque line running parallel to the chest wall, with complete absence of lung markings (vessels and bronchi) in the space between the pleural line and the chest wall. ### Why This Sign is Specific **High-Yield:** The visceral pleural line represents the edge of the collapsed lung. The space between this line and the inner chest wall is occupied by air (pneumothorax), which appears radiolucent. This creates a characteristic **two-zone appearance**: - Inner zone (toward hilum): normal lung markings present - Outer zone (toward chest wall): completely radiolucent with no vascular markings ### Other Radiological Findings in Pneumothorax | Sign | Description | Sensitivity | Specificity | |------|-------------|-------------|-------------| | **Visceral pleural line** | Thin line parallel to chest wall; absent lung markings peripherally | High | **Very high (pathognomonic)** | | **Lung collapse** | Mediastinal shift (tension PTX); ipsilateral lung volume reduction | Variable | Low (non-specific) | | **Hyperlucency** | Increased radiolucency of hemithorax | High | Low (can occur with other conditions) | | **Costophrenic angle blunting** | Indicates pleural effusion, not PTX | — | Absent in uncomplicated PTX | ### Clinical Correlation **Clinical Pearl:** In a supine patient or with small pneumothorax, the visceral pleural line may be difficult to see on frontal radiograph. In such cases, a **lateral decubitus radiograph** (affected side up) or **high-resolution CT** is more sensitive. However, when visible on standard upright CXR, the pleural line is diagnostic. ### Mnemonic: "PLEURAL LINE = PTX" - **P**leural edge visible - **L**ung markings absent peripherally - **E**dge runs parallel to chest wall - **U**nder the line: air (radiolucent) - **R**adiopaque thin line - **A**bsence of vessels beyond line - **L**ung collapse toward hilum **Tip:** Do not confuse the visceral pleural line with skin folds, clothing artifacts, or the normal cardiac silhouette edge — these do not show the characteristic absence of lung markings beyond them.
