A 52-year-old man with a history of chronic atrial fibrillation (not on anticoagulation) presents with acute dyspnea and syncope. Vital signs: BP 88/54 mmHg, HR 118/min, RR 28/min, SpO₂ 89% on room air. ECG shows sinus tachycardia with new T-wave inversions in leads V1–V4 and right axis deviation. Troponin I is mildly elevated. CTPA is performed urgently. The report describes: (1) massive thrombus in the right main pulmonary artery extending into bilateral lower lobe arteries, (2) severe right ventricular dilatation with RV/LV ratio >0.9, (3) bowing of the interventricular septum into the left ventricle, and (4) reflux of contrast into the hepatic veins and inferior vena cava. What is the most critical radiological finding that indicates hemodynamic compromise and guides immediate management?

Explanation

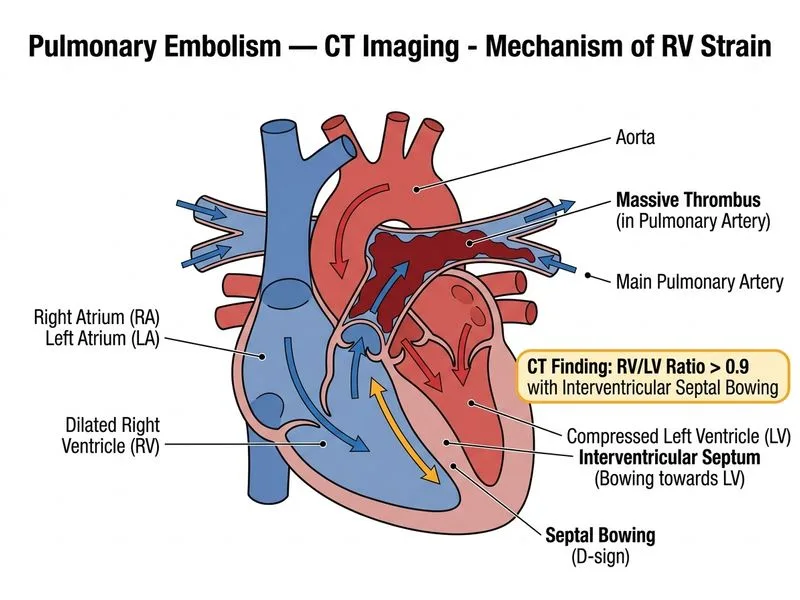

## CTPA Signs of Hemodynamic Compromise in Massive PE **Key Point:** RV dilatation (RV/LV ratio >0.9) with interventricular septal bowing is the MOST CRITICAL radiological sign indicating acute RV strain and hemodynamic instability, which mandates urgent intervention (thrombolysis or embolectomy). ### RV Dilatation as a Marker of Hemodynamic Compromise **High-Yield:** The RV/LV ratio on CTPA is a quantifiable measure of RV strain: - **RV/LV ratio ≤0.9** = Normal or mild RV dilatation - **RV/LV ratio >0.9** = Significant RV dilatation → hemodynamic compromise - **RV/LV ratio >1.5** = Severe RV dilatation → very high mortality risk ### Radiological Signs of RV Strain on CTPA | Finding | Significance | Clinical Implication | |---------|--------------|---------------------| | **RV dilatation (RV/LV >0.9)** | Acute RV pressure overload | Hemodynamic compromise | | **Interventricular septal bowing** | Septal displacement from RV pressure | Impaired LV filling | | **Hepatic vein/IVC reflux** | Elevated RA pressure | Right heart failure | | **McConnell sign** (RV apex sparing) | Selective RV free wall hypokinesis | Specific for acute PE | | **Massive central thrombus** | Large clot burden | High mortality, but size ≠ hemodynamics | **Clinical Pearl:** A patient can have a massive PE (large thrombus) but remain hemodynamically stable if the RV can compensate. Conversely, a smaller PE can cause hemodynamic collapse if it causes acute RV dilatation. The **RV/LV ratio and septal bowing** directly reflect hemodynamic status. ### Why RV/LV Ratio >0.9 Is the Answer 1. **Quantifiable marker** of RV strain on imaging 2. **Predicts hemodynamic instability** — correlates with hypotension, shock 3. **Guides therapy** — RV/LV >0.9 + hemodynamic instability = indication for thrombolysis or embolectomy 4. **Interventricular septal bowing** = evidence of RV pressure exceeding LV pressure → impaired LV filling In this patient: - Hypotensive (BP 88/54) - Syncope (cardiogenic shock) - Elevated troponin (RV ischemia) - RV/LV >0.9 + septal bowing = **hemodynamic PE** **Mnemonic: MASSIVE PE Hemodynamics** — **M**ain artery thrombus, **A**cute RV dilatation, **S**eptal bowing, **S**hock/syncope, **I**nterventions needed (thrombolysis), **V**enous reflux, **E**levated troponin. ```mermaid flowchart TD A[PE on CTPA]:::outcome --> B{RV/LV ratio?}:::decision B -->|≤0.9| C[Hemodynamically stable]:::outcome B -->|>0.9| D{Hypotension or shock?}:::decision D -->|No| E[Submassive PE - anticoagulation]:::action D -->|Yes| F[Massive PE - thrombolysis/embolectomy]:::urgent C --> G[Anticoagulation]:::action ``` [cite:Harrison 21e Ch 297]
