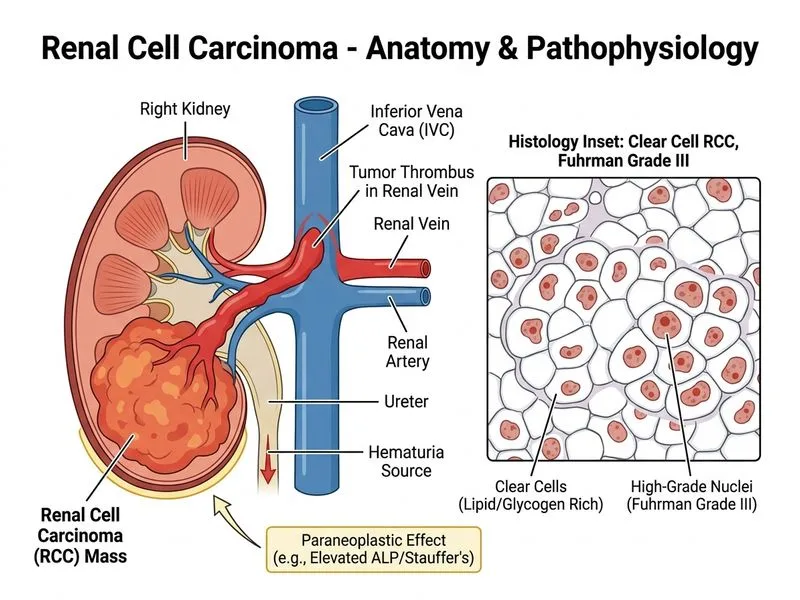

A 58-year-old man presents with gross hematuria and right flank pain for 3 weeks. On examination, a palpable mass is noted in the right flank. Contrast-enhanced CT abdomen shows a 6 cm heterogeneous mass in the right kidney with invasion into the renal vein. Serum creatinine is 1.2 mg/dL, hemoglobin 9.8 g/dL, and alkaline phosphatase is elevated at 120 U/L despite normal liver function tests. What is the most likely diagnosis and what is the pathological grade of this tumor?

Explanation

## Clinical Presentation & Diagnosis **Key Point:** The classic triad of hematuria, flank pain, and palpable mass is pathognomonic for advanced renal cell carcinoma (RCC). The presence of renal vein invasion and paraneoplastic manifestations (anemia, elevated ALP) confirms malignancy. ## Histopathological Considerations | Feature | Clear Cell RCC | Papillary RCC | Chromophobe RCC | Oncocytoma | |---------|---|---|---|---| | **Frequency** | 70–80% of RCC | 10–15% of RCC | 5% of RCC | Benign | | **Gross appearance** | Yellow/tan, hemorrhagic | Tan/white, papillary | Tan, homogeneous | Brown, homogeneous | | **Microscopy** | Clear cytoplasm (lipid/glycogen) | Papillary architecture | "Vegetable cells," binucleate | Granular, eosinophilic | | **Vascular invasion** | Common | Rare | Rare | Absent | | **Prognosis** | Variable, grade-dependent | Better than clear cell | Better than clear cell | Excellent (benign) | **High-Yield:** Clear cell RCC accounts for ~75% of all RCC cases and is the most common histological type. Renal vein invasion is a hallmark of clear cell RCC and indicates stage III disease. ## Fuhrman Nuclear Grading System **Mnemonic: NENE** — Nuclear size, Eosinophilia, Nucleolus visibility, Envelope irregularity 1. **Grade I:** Nuclei small (10 μm), round, finely granular chromatin, inconspicuous nucleolus 2. **Grade II:** Nuclei slightly larger (15 μm), irregular outline, coarse chromatin, visible nucleolus 3. **Grade III:** Nuclei large (20 μm), irregular, prominent nucleolus, coarse chromatin 4. **Grade IV:** Bizarre, multilobated nuclei, prominent nucleolus, abnormal mitoses **Clinical Pearl:** The presence of renal vein invasion, elevated alkaline phosphatase (paraneoplastic phenomenon), and anemia in a patient with a large heterogeneous renal mass strongly suggests Grade III or IV clear cell RCC. The heterogeneous appearance on imaging reflects areas of necrosis and hemorrhage typical of aggressive tumors. ## Staging & Prognosis ```mermaid flowchart TD A[Renal Mass]:::outcome --> B{Confined to kidney?}:::decision B -->|Yes| C[Stage I-II]:::outcome B -->|No| D{Renal vein/IVC involved?}:::decision D -->|Yes| E[Stage III]:::outcome D -->|No| F[Assess regional nodes]:::decision F -->|Involved| G[Stage III]:::outcome F -->|Not involved| H{Distant metastases?}:::decision H -->|Yes| I[Stage IV]:::urgent H -->|No| J[Stage I-II]:::outcome E --> K[Fuhrman Grade determines prognosis]:::action ``` **Key Point:** Renal vein invasion (present in this case) defines Stage III disease. Fuhrman grading is an independent prognostic factor; Grade III tumors have significantly worse 5-year survival (~40%) compared to Grade I–II (~80%). **High-Yield:** Paraneoplastic syndromes (fever, weight loss, anemia, elevated ALP, hypercalcemia) occur in ~30% of RCC patients and often indicate advanced disease.
