A 52-year-old woman with a history of acute myocardial infarction 2 days ago now presents with persistent hypotension (BP 88/56 mmHg), elevated jugular venous pressure (JVP 8 cm H₂O), clear lung fields, and reduced urine output (0.3 mL/kg/hr). Electrocardiography shows inferior wall MI. Which investigation is most appropriate to differentiate between cardiogenic shock due to right ventricular infarction versus acute mechanical complication in this patient?

Explanation

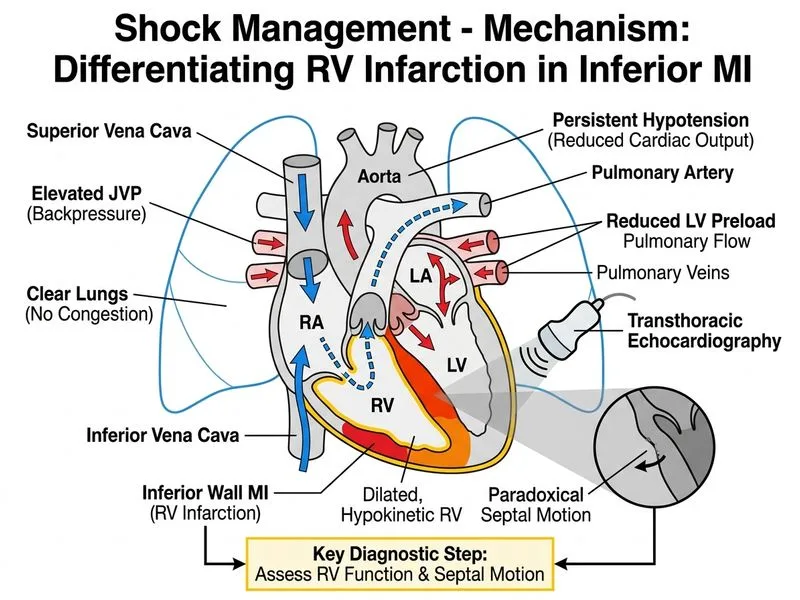

## Investigation of Choice in Suspected RV Infarction vs. Mechanical Complication ### Clinical Context This patient presents with: - Inferior wall MI (ECG finding) - Hypotension + elevated JVP + clear lungs = classic triad of RV infarction - Reduced urine output (poor perfusion) The differential includes: 1. **RV infarction alone** — preserved LV function, RV dysfunction 2. **Acute mechanical complication** — VSD, papillary muscle rupture, free wall rupture **Key Point:** Transthoracic echocardiography is the investigation of choice because it rapidly and non-invasively assesses: - RV size and function (dilated, hypokinetic in RV infarction) - Septal motion (abnormal in RV dysfunction; may show paradoxical motion in VSD) - LV function (preserved in isolated RV infarction; reduced if LV involved) - Presence of shunt flow (VSD), MR jet (papillary muscle rupture), or pericardial effusion (free wall rupture) ### Why Transthoracic Echo Is Superior 1. **Non-invasive** — can be done at bedside in minutes 2. **Real-time assessment** — visualizes chamber dimensions, wall motion, and flow dynamics 3. **Diagnostic accuracy** — sensitivity >90% for VSD, >80% for papillary muscle rupture 4. **Guides therapy** — differentiates RV infarction (fluid responsive) from mechanical complication (requires urgent intervention) 5. **Rapid turnaround** — allows immediate clinical decision-making ### Echocardiographic Findings in RV Infarction | Feature | RV Infarction | VSD | Papillary Muscle Rupture | |---------|---------------|-----|-------------------------| | RV size | Dilated | Normal/dilated | Normal | | RV function | Hypokinetic | Hypokinetic (if LV involved) | Hypokinetic | | Septal motion | Abnormal | Shunt flow visible | Normal | | MR jet | Absent | Absent | Severe, eccentric | | LV function | Normal | Reduced | Reduced | **Clinical Pearl:** In RV infarction, the key echocardiographic finding is **RV dilatation with preserved LV function**. The dilated RV with elevated JVP but clear lungs is pathognomonic. ### Why Other Options Are Suboptimal - **Right-sided ECG (V4R)** — helpful for diagnosis of RV involvement, but does NOT differentiate between RV infarction and mechanical complication; purely diagnostic, not therapeutic - **PAC** — invasive, delays diagnosis, and not first-line; reserved for refractory shock - **Cardiac MRI** — excellent for tissue characterization but too time-consuming in acute shock; not appropriate for immediate decision-making
