A 6-year-old boy with known tetralogy of Fallot (TOF) presents to the emergency department with acute cyanotic spell. Arterial blood gas shows pH 7.28, PaCO₂ 48 mmHg, PaO₂ 35 mmHg, and HCO₃⁻ 22 mEq/L. The child is anxious and tachypneic. Which of the following is the MOST appropriate immediate management?

Explanation

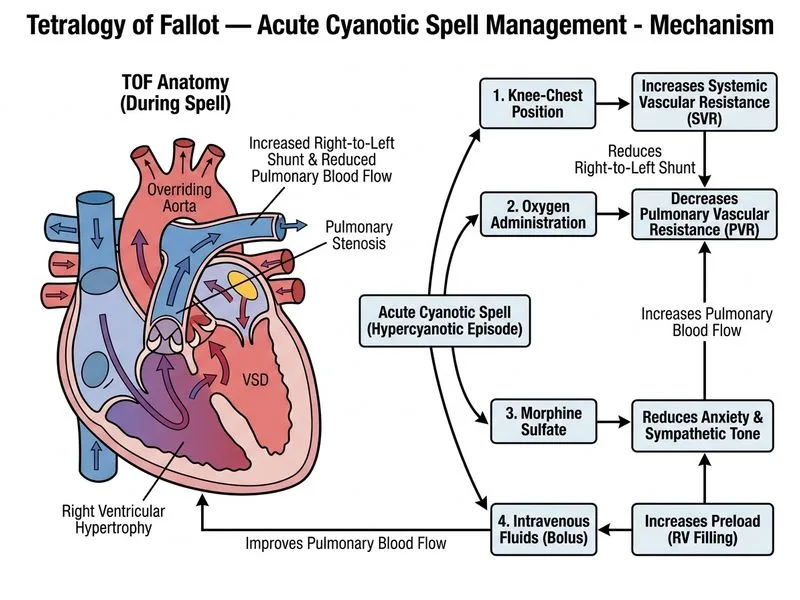

## Management of Acute Cyanotic Spell in TOF ### Pathophysiology of the Spell **Key Point:** A cyanotic spell (hypercyanotic spell) in TOF results from acute increase in right-to-left shunting due to: - Increased right ventricular outflow tract (RVOT) obstruction (infundibular spasm) - Decreased systemic vascular resistance - Increased venous return - Increased myocardial contractility (anxiety, pain) The resulting metabolic acidosis (HCO₃⁻ 22, pH 7.28) worsens the spasm, creating a vicious cycle. ### Immediate Management Algorithm ```mermaid flowchart TD A[Acute cyanotic spell in TOF]:::outcome --> B[Oxygen + Morphine]:::action B --> C[Knee-chest position]:::action C --> D[IV fluids/increase SVR]:::action D --> E{Spell resolving?}:::decision E -->|Yes| F[Continue supportive care]:::action E -->|No| G[IV propranolol or esmolol]:::action G --> H{Still refractory?}:::decision H -->|Yes| I[Prepare for emergency PGE₁ or surgery]:::urgent H -->|No| F ``` ### Why the Correct Answer is Right **High-Yield:** The mnemonic **MOAN** captures acute spell management: - **M**orphine (0.1 mg/kg IV) — sedation + reduces catecholamine surge + decreases contractility - **O**xygen — increases PaO₂ and reduces pulmonary vascular resistance - **A**ngle (knee-chest position) — increases systemic vascular resistance, reduces right-to-left shunt - **N**ormal saline IV bolus — increases preload, improves systemic perfusion **Clinical Pearl:** Morphine is the first-line drug because it: 1. Reduces anxiety and catecholamine release (which worsens RVOT spasm) 2. Decreases myocardial contractility (reduces RV outflow obstruction) 3. Causes mild sedation and reduces respiratory drive (improves ventilation-perfusion matching) The knee-chest position increases systemic vascular resistance by compressing the femoral vessels, reducing the pressure gradient favoring right-to-left shunting. ### Why Propranolol is Second-Line **Key Point:** Propranolol (or esmolol) is used ONLY if the spell does not respond to the above measures within 5–10 minutes. It is NOT the first-line agent because: - It takes time to work (IV propranolol: 5–10 minutes to peak effect) - In an acute, deteriorating spell, immediate measures (oxygen, morphine, positioning) are prioritized - Propranolol is useful for prophylaxis and for refractory spells, not initial management ### Acid-Base Interpretation The ABG shows: - **pH 7.28** → metabolic acidosis (normal >7.35) - **PaCO₂ 48** → mild respiratory acidosis (normal 35–45) - **PaO₂ 35** → severe hypoxemia (normal >80 on room air) - **HCO₃⁻ 22** → low (normal 22–26), consistent with metabolic acidosis This is a **mixed acidosis** (metabolic + respiratory). The metabolic component is PRIMARY and results from tissue hypoxia and anaerobic metabolism. Sodium bicarbonate is NOT indicated as first-line because: 1. It does not address the underlying cause (right-to-left shunt) 2. It may paradoxically worsen the spell by increasing CO₂ production 3. Correcting hypoxemia and reducing shunt is the priority ### Why NOT Immediate Surgery While definitive management of TOF is surgical correction, acute cyanotic spells are managed medically first. Surgery is reserved for: - Failure of medical management - Refractory spells despite maximal medical therapy - Preparation for elective total correction (usually after 3–6 months of age) Emergency surgery is only considered if the child is unresponsive to all medical measures and is in cardiogenic shock. [cite:Nelson Textbook of Pediatrics 21e Ch 427]
