A 52-year-old woman from Mumbai with a history of acute rheumatic fever (ARF) in childhood presents with exertional chest discomfort, syncope, and a systolic ejection murmur best heard at the right upper sternal border that radiates to the neck. Echocardiography shows a bicuspid aortic valve with restricted leaflet opening. Which investigation is most appropriate to assess the hemodynamic severity and guide intervention?

Explanation

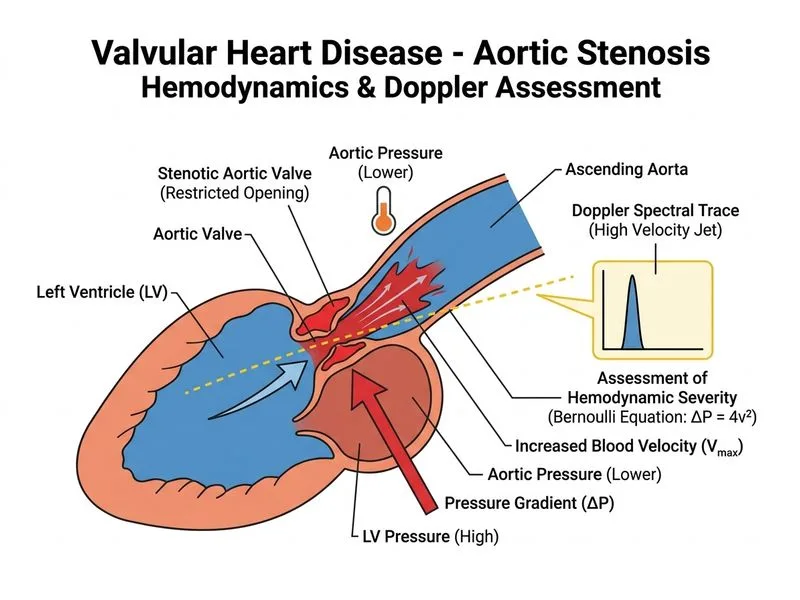

## Assessment of Aortic Stenosis Severity **Key Point:** In a patient with suspected aortic stenosis (AS), transthoracic echocardiography with continuous-wave (CW) Doppler is the gold standard investigation to measure hemodynamic severity and guide clinical management. ## Why Continuous-Wave Doppler? ### Hemodynamic Parameters Measured 1. **Peak instantaneous gradient (PIG)** — maximum pressure difference across the valve 2. **Mean pressure gradient (MPG)** — average gradient throughout systole 3. **Aortic valve area (AVA)** — calculated using continuity equation 4. **Left ventricular ejection fraction (LVEF)** — assesses systolic function 5. **Left ventricular mass index (LVMI)** — detects hypertrophy ### Severity Classification | Parameter | Mild | Moderate | Severe | |---|---|---|---| | **AVA (cm²)** | >1.5 | 1.0–1.5 | <1.0 | | **Mean gradient (mmHg)** | <25 | 25–40 | >40 | | **Peak velocity (m/s)** | <3 | 3–4 | >4 | **High-Yield:** CW Doppler is superior to pulsed-wave Doppler for measuring high-velocity jets across stenotic valves because it can record velocities without aliasing. ## Why Other Investigations Are Not First-Line ### Transesophageal Echocardiography (TEE) - Reserved for: - Inadequate transthoracic acoustic windows (obesity, emphysema) - Evaluation of prosthetic valves - Detection of endocarditis vegetations - Pre-procedural imaging for transcatheter aortic valve implantation (TAVI) - **Not needed** when transthoracic echo provides adequate data ### Cardiac Magnetic Resonance Imaging (CMR) - Useful for: - Assessing aortic root dimensions and ascending aorta morphology - Evaluating myocardial fibrosis (late gadolinium enhancement) - Patients with contraindications to echocardiography - **Not first-line** because it does not measure hemodynamic gradients as accurately as Doppler ### Coronary Angiography - Indicated only for: - Preoperative risk stratification in patients >40 years with risk factors for CAD - Symptomatic patients (angina, syncope) to exclude concurrent coronary disease - **Not diagnostic** for aortic stenosis severity **Clinical Pearl:** In this patient with syncope and a systolic murmur, the combination of echocardiography findings (bicuspid valve, restricted opening) and hemodynamic data (gradient, AVA) determines whether she requires intervention (surgical aortic valve replacement or TAVI). CW Doppler is essential for this decision. **Mnemonic:** **CAVE** — **C**ontinuous-wave Doppler for **A**ortic **V**alve **E**valuation of stenosis severity. ```mermaid flowchart TD A[Suspected Aortic Stenosis]:::outcome --> B[Transthoracic Echo + CW Doppler]:::action B --> C{Adequate acoustic window?}:::decision C -->|Yes| D[Measure AVA, gradients, LVEF]:::action C -->|No| E[Consider TEE]:::action D --> F{Severe AS?}:::decision F -->|Yes + symptoms| G[Intervention: SAVR or TAVI]:::action F -->|No or asymptomatic| H[Medical management + surveillance]:::action G --> I{Preop CAD risk?}:::decision I -->|Yes| J[Coronary angiography]:::action ```
