A 42-year-old woman from Mumbai presents with sudden onset of a 'shadow' or 'curtain' in her right eye that started superiorly and progressed downward over 2 hours. She denies pain. Visual acuity is 6/9 OD. Fundoscopy reveals a dark, elevated shadow in the superior retina with a clear demarcation line. The optic nerve appears normal. Which retinal layer is compromised, and what is the primary vascular pathology?

Explanation

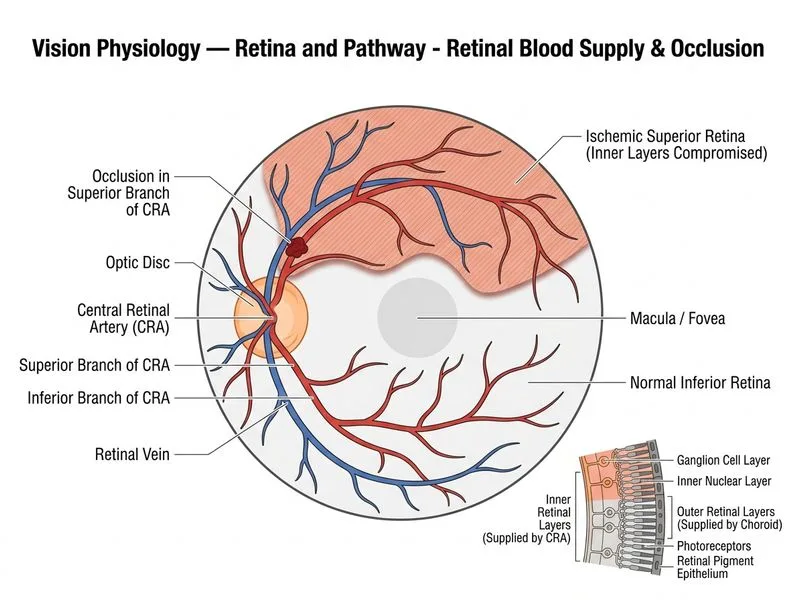

## Clinical Presentation Analysis The patient presents with: - Sudden onset visual shadow/curtain (superior to inferior progression) - Painless vision loss - Acuity 6/9 (partial vision preserved) - Dark, elevated shadow with clear demarcation line on fundoscopy - Normal optic nerve This is classic **branch retinal artery occlusion (BRAO)**, specifically **superior branch CRAO**. ## Pathophysiology of Branch Retinal Artery Occlusion **Key Point:** BRAO causes infarction of the **inner retinal layers** (from internal limiting membrane to inner nuclear layer), which are supplied by the retinal circulation. ### Retinal Blood Supply Architecture ```mermaid flowchart TD A[Central Retinal Artery]:::outcome --> B[Superior Branch]:::outcome A --> C[Inferior Branch]:::outcome B --> D[Supplies inner retina:<br/>GCL, IPL, INL, OPL]:::action C --> E[Supplies inner retina:<br/>GCL, IPL, INL, OPL]:::action F[Photoreceptor Layer]:::outcome --> G[Supplied by RPE<br/>via choroidal circulation]:::action H[RPE]:::outcome --> I[Supplied by short posterior<br/>ciliary arteries]:::action ``` ## Why Inner Retinal Layers Are Affected | Retinal Layer | Blood Supply | Status in BRAO | |---|---|---| | **Photoreceptor layer** | Choroid (RPE) | Preserved — supplied by different vessel | | **Inner nuclear layer (INL)** | **Retinal artery** | **INFARCTED** | | **Ganglion cell layer (GCL)** | **Retinal artery** | **INFARCTED** | | **Inner plexiform layer (IPL)** | **Retinal artery** | **INFARCTED** | | **Outer plexiform layer (OPL)** | **Retinal artery** | **INFARCTED** | | RPE | Choroid | Preserved | | Bruch's membrane | Choroid | Preserved | **High-Yield:** The outer retina (photoreceptors, outer nuclear layer) receives oxygen primarily from the choroid via the RPE. Therefore, retinal artery occlusion spares the outer retina initially. ## Clinical Pearl: Why Vision Is Preserved The patient retains 6/9 vision because: - The **photoreceptor layer is preserved** (supplied by choroid, not retinal artery) - Only the **inner retinal layers** (which process and transmit signals) are infarcted - Central vision may be better preserved if the fovea is spared - The fovea has a dual blood supply (retinal + choroidal), providing some protection ## Why the Shadow Appears as an "Elevated Dark Area" The infarcted inner retina appears: - **Dark/whitish** due to edema and ischemia (retinal whitening from edema) - **Elevated** due to retinal swelling from acute ischemia - **Clear demarcation** because the occlusion is at a specific arterial branch point **Mnemonic:** BRAO = **B**ranch **R**etinal **A**rtery **O**cclusion → **I**nner retinal **I**nfarction ## Why Superior Branch CRAO (Not Central) The superior-to-inferior progression of the shadow indicates: - Occlusion of the **superior branch** of the central retinal artery (not the main trunk) - If the main CRAO were occluded, the entire retina would be affected (6/60 or worse vision) - Branch occlusion affects only the territory of that branch [cite:Ganong's Review of Medical Physiology 26e Ch 8; Khurana AK Comprehensive Ophthalmology 6e Ch 10]
