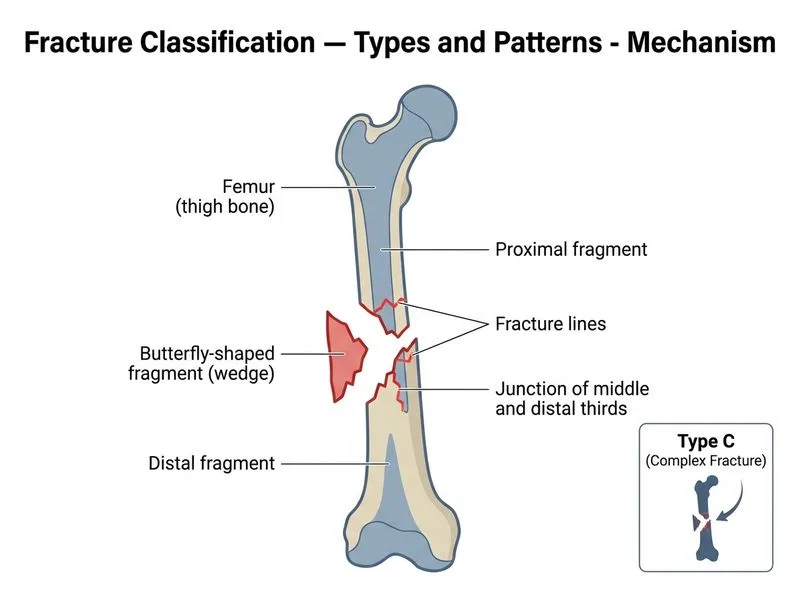

A 28-year-old female cyclist is struck by a car on her right side. She presents with severe right thigh pain and swelling. Physical examination reveals crepitus and gross instability of the femur. X-ray of the right femur shows a fracture at the junction of the middle and distal thirds with two major fragments and a separate butterfly-shaped fragment between them. There is no involvement of the articular surfaces. How would this fracture be classified according to the AO/OTA classification system?

Explanation

## Diagnosis: Type B Wedge Fracture (AO/OTA Classification) ### AO/OTA Classification System Overview The AO/OTA classification divides diaphyseal long bone fractures into three main types based on fragment pattern and fracture complexity: | Type | Name | Fragment Pattern | Key Feature | |------|------|------------------|-------------| | **A** | Simple | 2 fragments only | Single fracture line; cortical contact after reduction | | **B** | Wedge | 3 fragments (butterfly/wedge + 2 main fragments) | Intermediate fragment; main fragments maintain contact after reduction | | **C** | Complex | Segmental or severely comminuted (≥4 fragments, no cortical contact) | Main fragments do NOT contact after reduction | **Key Point:** The hallmark of a **Type B (wedge) fracture** is the presence of **two main fragments** and **one intermediate butterfly or wedge-shaped fragment**, such that after reduction the two main fragments can still make cortical contact. This is precisely what the stem describes. ### Fracture Pattern Analysis **High-Yield:** In this vignette: - **Two major fragments** + **one butterfly-shaped fragment** = classic 3-fragment wedge pattern → **Type B** - The butterfly fragment is a single, discrete intermediate fragment — not multiple comminuted pieces - No articular involvement (diaphyseal fracture at middle-distal third junction) - High-energy mechanism (motor vehicle collision) is consistent with a wedge fracture ### Type B vs. Type C Distinction **Clinical Pearl:** The critical differentiator between Type B and Type C is **NOT simply fragment count** but whether the two main fragments can make cortical contact after reduction: - **Type B (Wedge):** One intermediate fragment; main fragments CAN contact after reduction → reducible - **Type C (Complex):** Multiple comminuted fragments OR segmental pattern; main fragments CANNOT contact after reduction → irreducible The stem explicitly states "two major fragments and a **separate** butterfly-shaped fragment" — this is the textbook definition of a **Type B2 (butterfly wedge)** fracture. Type C would require additional comminution or a segmental pattern with loss of cortical continuity between the main fragments. ### AO/OTA Subclassification for Type B - **B1:** Spiral wedge - **B2:** Bending wedge (butterfly fragment) ← **this case** - **B3:** Fragmented wedge (multiple intermediate fragments — approaching Type C) ### Management Implications - **Type B fractures** typically require open reduction and internal fixation (ORIF) with lag screw fixation of the butterfly fragment and neutralization plating, or intramedullary nailing - Prognosis is intermediate between simple (Type A) and complex (Type C) fractures **High-Yield Mnemonic:** **ABC of AO/OTA** — **A**lways 2 fragments (simple), **B**utterfly = wedge (3 fragments, main fragments contact), **C**omplex = comminuted/segmental (no cortical contact). [cite: Rockwood & Green's Fractures in Adults, 10e, Ch. 1; AO Surgery Reference — AO/OTA Fracture Classification]
