A 32-year-old man sustains a fracture of the femoral shaft from a motor vehicle accident. On imaging, the fracture line runs perpendicular to the long axis of the bone with minimal comminution. Which feature best distinguishes this transverse fracture from a spiral fracture of the same bone?

Explanation

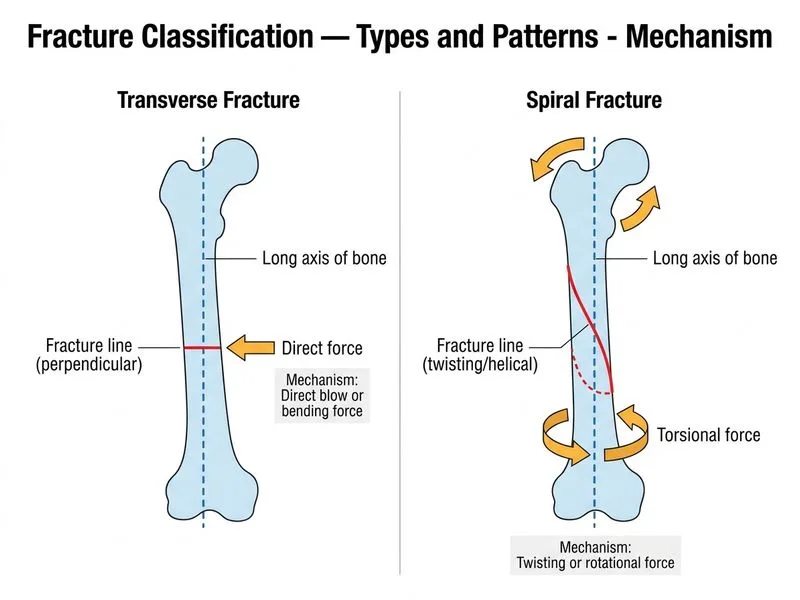

## Transverse vs. Spiral Fractures: Morphological Distinction ### Core Definitions **Key Point:** The **direction of the fracture line** relative to the long axis of the bone is the defining morphological feature that distinguishes transverse from spiral fractures. - **Transverse fracture:** Fracture line runs perpendicular (90°) to the long axis of the bone. - **Spiral fracture:** Fracture line wraps around the bone in a helical pattern, typically at an oblique angle to the long axis. ### Mechanism and Pattern Correlation **High-Yield:** The fracture pattern reflects the mechanism of injury: | Fracture Type | Mechanism | Fracture Line Direction | Comminution | Soft-Tissue Injury | | --- | --- | --- | --- | --- | | Transverse | Direct blow, bending force | Perpendicular to axis | Minimal | Moderate | | Spiral | Torsion (twisting), shear | Oblique, helical wrap | Often present | Often severe | | Oblique | Combined bending + shear | 45° to axis | Variable | Variable | | Comminuted | High-energy trauma | Multiple fragments | Extensive | Severe | ### Why Radiological Appearance Is the Discriminator **Clinical Pearl:** On anteroposterior and lateral radiographs, a transverse fracture appears as a clean perpendicular line, whereas a spiral fracture shows a characteristic helical or "barber-pole" pattern that winds around the bone. This is visible on imaging and is the **gold standard** for distinguishing these two patterns. ### Why Other Features Are Not Discriminators **Warning:** Do NOT confuse fracture *pattern* with fracture *severity*: 1. **Soft-tissue damage:** While spiral fractures *tend* to occur with higher-energy mechanisms and more soft-tissue injury, transverse fractures from direct high-impact trauma can also cause severe soft-tissue damage. This is not a reliable discriminator. 2. **Butterfly fragments:** These are characteristic of comminuted fractures (especially oblique with a large butterfly fragment), but they are NOT unique to spiral or transverse fractures. A transverse fracture can be comminuted; a spiral fracture may have no butterfly fragments. 3. **Displacement:** Both transverse and spiral fractures can be minimally or severely displaced depending on the force and direction of injury. Displacement does not distinguish the two patterns. ### Mnemonic **Mnemonic:** **T-PERP, S-SPIRAL** - **T**ransverse = **PERP**endicular to axis - **S**piral = wraps in a **SPIRAL** (helical) pattern
