A 52-year-old man presents to the ophthalmology clinic with blurred vision in both eyes for 2 weeks. He has a 10-year history of poorly controlled hypertension (current BP 180/120 mmHg). On fundoscopy, he has flame-shaped hemorrhages, cotton-wool spots, hard exudates arranged in a macular star pattern, and optic disc swelling. His serum creatinine is 2.8 mg/dL and urinalysis shows 3+ proteinuria. What is the most likely grade of hypertensive retinopathy?

Explanation

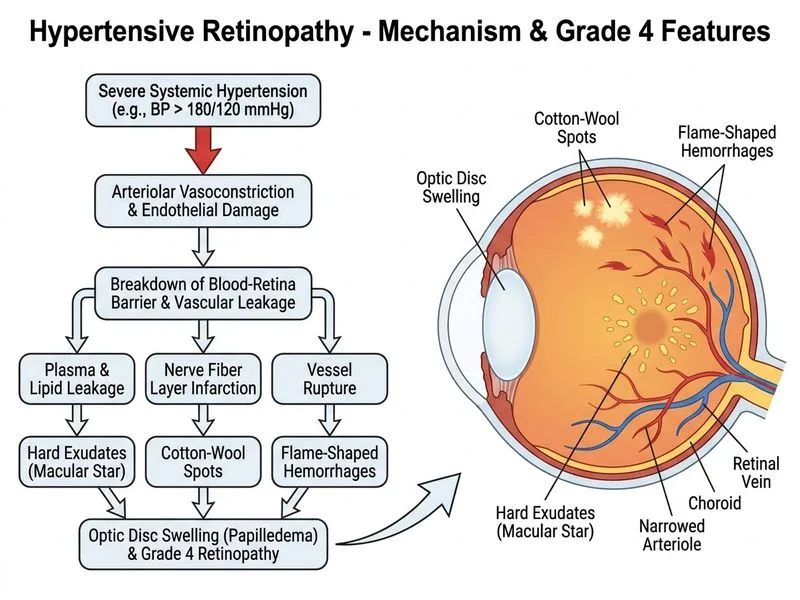

## Classification of Hypertensive Retinopathy The Keith-Wagener-Barker classification (modified by Fong et al.) grades hypertensive retinopathy based on fundoscopic findings and systemic involvement: | Grade | Retinal Findings | Systemic Features | Prognosis | |-------|------------------|-------------------|----------| | 1 | Mild arteriolar narrowing | None | Excellent | | 2 | Arteriolar narrowing + AV nicking | None | Good | | 3 | Grade 2 + flame hemorrhages, cotton-wool spots, hard exudates | May have renal involvement | Fair | | 4 | Grade 3 + **optic disc edema/papilledema** | Acute renal failure, encephalopathy, hypertensive crisis | Poor | **Key Point:** Grade 4 (malignant hypertensive retinopathy) is defined by the **presence of optic disc swelling** in the setting of acute severe hypertension with end-organ damage. **Clinical Pearl:** The combination of optic disc edema + severe hypertension + acute renal dysfunction (Cr 2.8) + proteinuria indicates **hypertensive emergency** with acute kidney injury, not merely chronic hypertensive changes. **High-Yield:** Macular star exudates (lipid deposition in a radial pattern around the macula) are a hallmark of Grade 3–4 disease and indicate severe vascular leakage. **Mnemonic:** **CHOP** for Grade 4 features: - **C**otton-wool spots - **H**emorrhages (flame-shaped) - **O**ptic disc edema (papilledema) ← **Defining feature of Grade 4** - **P**roteinuria & renal dysfunction ## Why This Is Grade 4 1. **Optic disc swelling** is the critical finding that elevates this to Grade 4. 2. **Acute renal failure** (Cr 2.8, proteinuria) indicates end-organ damage. 3. **Severely elevated BP** (180/120) in the acute setting. 4. **Macular star exudates** reflect severe vascular compromise. Without optic disc edema, this would be Grade 3. The presence of papilledema is the pathognomonic feature of malignant hypertensive retinopathy.
