A 28-year-old man with acute orbital cellulitis secondary to ethmoid sinusitis is being evaluated for complications. On day 3 of IV ceftriaxone and vancomycin, he develops sudden worsening of proptosis, complete ophthalmoplegia, and a fixed dilated pupil. Which imaging finding would best discriminate the development of cavernous sinus thrombosis from uncomplicated orbital cellulitis?

Explanation

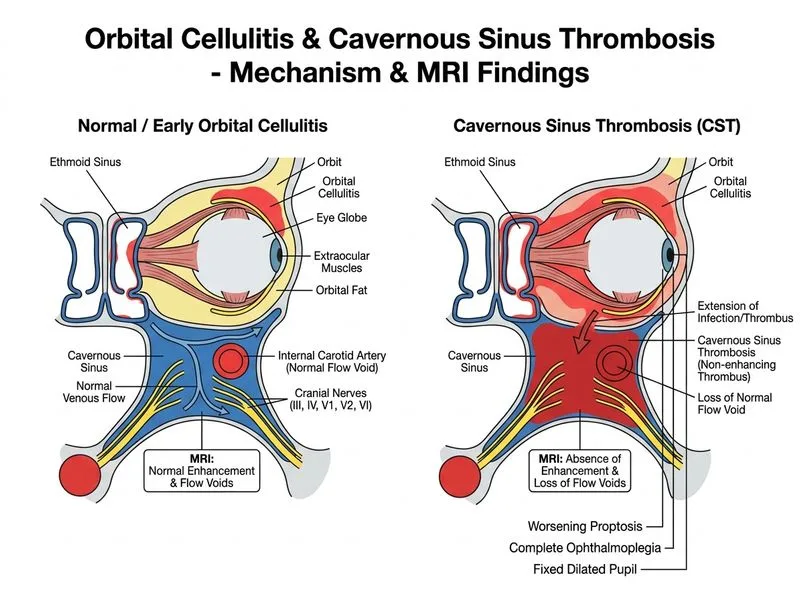

## Imaging Discrimination: Orbital Cellulitis vs. Cavernous Sinus Thrombosis ### Imaging Features Comparison | Imaging Modality | Orbital Cellulitis | Cavernous Sinus Thrombosis | |------------------|-------------------|---------------------------| | **CT findings** | Orbital fat stranding; may show source (sinusitis) | Fat stranding + sinus involvement | | **MRI T1 (post-Gd)** | Diffuse enhancement of orbital fat | **Heterogeneous or absent enhancement** of cavernous sinus | | **MRI T2/FLAIR** | Hyperintense orbital edema | Hyperintense thrombus in cavernous sinus | | **MR Venography** | Normal flow voids | **Loss of normal flow voids**; absent or diminished signal | | **Diffusion (DWI)** | Restricted diffusion in abscess (if present) | Restricted diffusion in thrombus | **Key Point:** The **loss of normal flow voids on MRI and absent or heterogeneous enhancement of the cavernous sinus** is the pathognomonic imaging finding of cavernous sinus thrombosis. Normal orbital cellulitis shows diffuse enhancement and preserved vascular flow. ### Pathophysiology of Imaging Findings **Orbital Cellulitis:** - Acute inflammation of orbital fat and muscles - Diffuse enhancement on post-gadolinium T1 (hyperemia) - Preserved flow voids in ophthalmic veins and cavernous sinus - May show source (sinusitis, abscess) **Cavernous Sinus Thrombosis:** - Septic thrombophlebitis → fibrin and platelet thrombus - Thrombus is **hypointense on T1**, **hyperintense on T2** (methemoglobin) - **Loss of normal flow voids** due to stasis and clot - Heterogeneous or absent enhancement (poor perfusion through thrombus) - Edema and enhancement of cavernous sinus walls (inflammation) **High-Yield:** **MR Venography (MRV) is the gold standard** for detecting cavernous sinus thrombosis. The absence of normal flow signal in the cavernous sinus is diagnostic. CT may miss early thrombosis; MRI with MRV is superior. **Clinical Pearl:** A patient with orbital cellulitis who clinically deteriorates (worsening ophthalmoplegia, pupil dilation, fever spike) should undergo urgent MRI with MRV. If flow voids are absent, cavernous sinus thrombosis is present—escalate to aggressive anticoagulation (heparin) plus antibiotics. ### Why This Discriminates Orbital cellulitis shows diffuse inflammatory enhancement and normal vascular flow. Cavernous sinus thrombosis shows loss of flow voids and heterogeneous/absent enhancement—the thrombus itself blocks flow and perfusion. This imaging finding directly reflects the pathology (thrombosis) and is the best discriminator.
