Correct Answer: D. pH-7.14, pCO2-20 mmHg, HCO3- 5 mEq/L

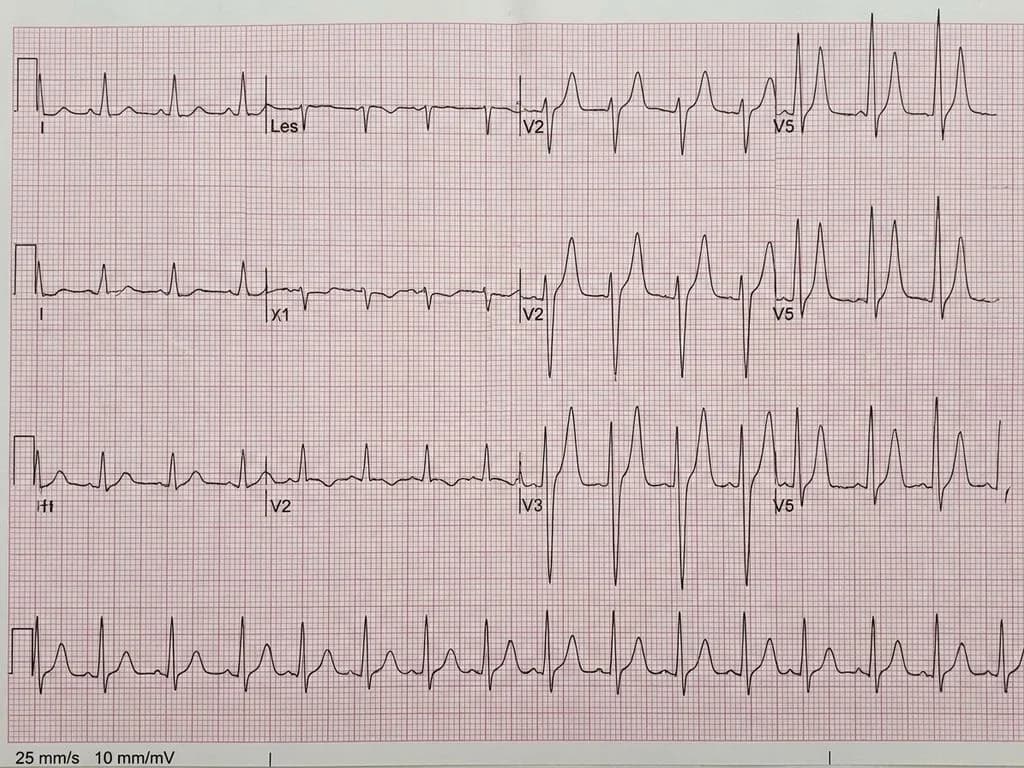

This patient with chronic renal failure presents with acute collapse, laboured breathing, and tall tented T waves on ECG—the classic triad of hyperkalemic cardiac emergency. The tall tented T waves are pathognomonic for hyperkalemia, which triggers life-threatening arrhythmias in dialysis patients.
In chronic renal failure, the kidneys cannot excrete potassium or hydrogen ions, leading to metabolic acidosis with severe hyperkalemia. The acid-base picture must show: (1) low pH (<7.35) from accumulated organic acids (uremic acids, phosphates, sulfates); (2) very low HCO3− (typically 5–15 mEq/L) reflecting the buffering of excess H+ by bicarbonate; (3) low pCO2 (typically 15–25 mmHg) from respiratory compensation—the patient hyperventilates to blow off CO2 and raise pH (Winter's formula predicts pCO2 = 1.5 × HCO3− + 8 ± 2; here 1.5 × 5 + 8 ± 2 = 15.5 ± 2, so pCO2 should be 13–18 mmHg, and 20 mmHg is at the upper limit of appropriate compensation).
Option D (pH 7.14, pCO2 20 mmHg, HCO3− 5 mEq/L) shows severe metabolic acidosis with appropriate respiratory compensation—exactly what is expected in acute uremic crisis with hyperkalemia. The low HCO3− and low pCO2 are consistent with the kidneys' inability to excrete acid and the lungs' attempt to compensate. This is the only option that matches the clinical presentation of acute renal failure with hyperkalemic emergency.
Why the other options are wrong
A. pH-7.4, HCO3- 27 mEq/L, pCO2- 40 mmHg — This is normal acid-base status (pH 7.35–7.45, HCO3− 22–26, pCO2 35–45). A dialysis patient in acute collapse with hyperkalemia cannot have normal acid-base parameters. This option ignores the pathophysiology of renal failure—the kidneys cannot excrete H+ or regulate HCO3−, so metabolic acidosis must develop. NBE trap: testing whether students confuse a stable dialysis patient (who may be relatively compensated) with an acute uremic crisis. B. pH-7.14, pCO2-20 mmHg, HCO3- 34 mEq/L — This shows metabolic alkalosis (HCO3− 34 mEq/L is elevated) with respiratory compensation (pCO2 20 mmHg is low). However, renal failure causes metabolic acidosis, not alkalosis. Alkalosis would occur in vomiting, diuretic use, or contraction—not in acute uremia. The low pH (7.14) contradicts the elevated HCO3−; this internally inconsistent option tests whether students mechanically apply Winter's formula without understanding the underlying pathology. C. pH-7.54, HCO3- 27 mEq/L, pCO2- 34 mmHg — This shows metabolic alkalosis (pH 7.54 is elevated, HCO3− 27 is high-normal to elevated) with appropriate respiratory compensation (pCO2 34 mmHg is low). Renal failure causes metabolic acidosis, not alkalosis. A dialysis patient in acute collapse with hyperkalemia and tall T waves is in uremic crisis, not alkalotic crisis. This option may trap students who confuse dialysis-related electrolyte shifts with the primary acid-base disorder of renal failure.
High-Yield Facts
- Tall tented T waves on ECG are pathognomonic for hyperkalemia and indicate cardiac membrane instability—a medical emergency in dialysis patients.
- Metabolic acidosis in renal failure results from inability to excrete H+ and organic acids (uremic acids, phosphates, sulfates); HCO3− is typically <15 mEq/L.
- Winter's formula (pCO2 = 1.5 × HCO3− + 8 ± 2) predicts appropriate respiratory compensation; pCO2 >25 mmHg in metabolic acidosis suggests concurrent respiratory acidosis.
- Hyperkalemia in renal failure occurs because the kidneys cannot excrete K+ and acidosis shifts K+ out of cells; serum K+ >6.5 mEq/L causes ECG changes.
- Acute uremic crisis presents with laboured breathing (Kussmaul respiration), altered mental status, and cardiac arrhythmias—requires emergent dialysis and calcium gluconate for cardiac stabilization.
Mnemonics
RENAL FAILURE ACIDOSIS: HCO3 DOWN, pCO2 DOWN In renal failure: Hyperkalemia + Acidosis + Dyspnea (Kussmaul) → HCO3− DOWN (kidneys can't excrete H+), pCO2 DOWN (lungs hyperventilate to compensate). Remember: both go DOWN, not one up and one down. TALL T WAVES = HYPERKALEMIA EMERGENCY Tall Tented T-waves = Three Threats: (1) peaked T waves, (2) prolonged PR, (3) widened QRS. In dialysis patients, this is hyperkalemia until proven otherwise—give calcium gluconate NOW.
NBE Trap
NBE pairs "dialysis patient + collapse + tall T waves" with normal or alkalotic acid-base parameters to test whether students reflexively recognize hyperkalemia as the diagnosis without understanding that renal failure always causes metabolic acidosis. The trap is choosing an option that matches the cardiac finding (hyperkalemia) but ignores the acid-base consequence of renal failure.
Clinical Pearl
In Indian dialysis units, acute hyperkalemic collapse is a common presentation in patients who miss dialysis sessions or consume high-K+ foods (bananas, coconut water, tomatoes). The combination of tall T waves + laboured breathing + pH <7.2 is a red flag for life-threatening hyperkalemia with metabolic acidosis—immediate ECG, stat serum K+, and emergent dialysis are required. Calcium gluconate stabilizes the cardiac membrane within minutes while dialysis removes excess K+.
_Reference: Harrison Ch. 280 (Chronic Kidney Disease); KD Tripathi Ch. 12 (Acid-Base Disorders); Robbins Ch. 20 (Kidney Disease)_
